Connectorized Panel for 19” 1U Rack with 24 RJ45 Category 6A FTP Female Connectors from Televes
Televes 19″ Connectorized Panel with 24 Female RJ45 Connectors 533181

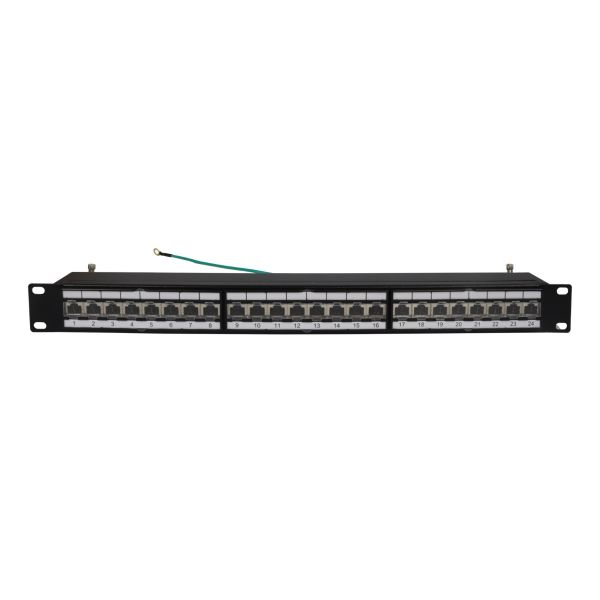

The Televes 533181 is a 19″ rack panel that occupies 1U height. It comes equipped with 24 female RJ45 connectors of category 6A with FTP shielding. These connectors are individually numbered and labeled according to TIA 568-A and TIA 568-B standards for improved cable management.
It is designed to support data transmission under the gigabit ethernet standard. Its 50-micron gold-plated connectors will provide an optimal connection.
It is made of high-strength zinc alloy inblack color RAL 9005. It includes the necessary material for mounting in the rack cabinet.
Material included:
24Xrj45 cat6 panel
4 screws and 4 nuts
Metal cover
2 Velcro cable ties and 8 plastic cable ties
12 screws M2x14 + clamp
Ground wire 460mm
Technical Specifications of Televes 19″ Connectorized Panel with 24 Female RJ45 Connectors 533181
Number of rack units (HE) ? 1
Modular spacing (standard) in 19
Number of connectors ? 24
Data connector type ? RJ45
Connector shielding ? Yes
Categorie ? Cat 6A
Connection type ? 110
Contact resistance m? < 20
Insulation resistance M? 500
Return losses (typ.) dB 7.4
Width mm 484
Height mm 45
Depth mm 103
Colour ? Black
