Cu/CCA Coaxial Cable Euroclass Dca Indoor (100m)
Coaxial Cable CXT Cu/CCA Euroclass Dca Televes 213910 (100m)

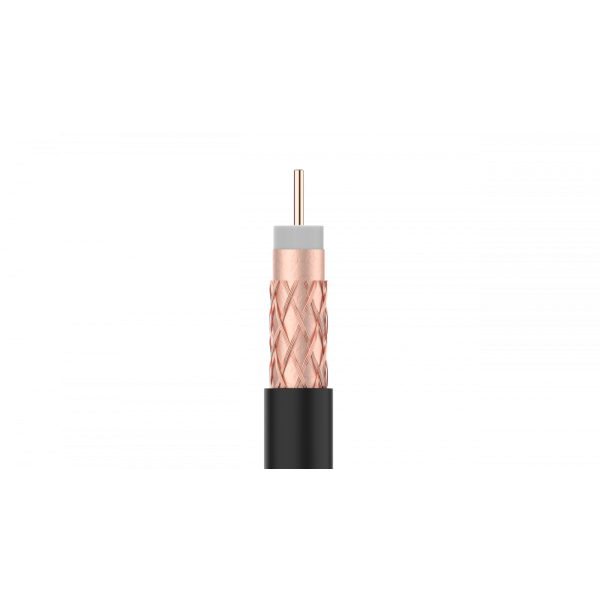

CXT coaxial cable reel with Copper (Cu) center conductor, Copper-clad Aluminum (CCA) braid and LSFH black outer jacket recommended for indoor installation.
This cable has double shielding against interference and is classified as Euroclass Dca against fires, whose characteristics are: no flame propagation and lower heat emission and fire growth rate.
Cable with perfect value for money, which offers excellent response throughout the frequency range at an unbeatable price.
**
CXT Cu/CCA double shield Euroclass Dca coaxial cable with Indoor Black LSFH sheath
What are the main characteristics of the Televes 213910 Coaxial Cable?
Copper inner conductor and copper-clad aluminium braid
Dca-s2,d2,a2 Euroclass
White-colour external LSFH sheath
75 Ohm characteristic impedance
Available in reels of different lengths
What technical specifications does the Televes 213910 Coaxial Cable have?
Type CXT
Standard EN 50117-2-4
EuroClass Dca-s2,d2,a2
Class B
Inner conductor ? mm 1
Material CU
Res. Ohm/Km <23
Dielectric ? mm 4,8
Material PEE
Overlapped foil Copper + Polyester
Braid Material CCA
Dimensions (Ncx Nsx ?) 16 x 3 x 0,12
Res. Ohm/Km <35
Coverage % 35
Anti-migrating film No
Petrol-Jelly No
Outer sheath ? mm 6,6
Material LSFH
Minimum bending radius mm 33
Screening attenuation @ 1GHz dB >75
Capacitance pF/m 55
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ?15
Velocity ratio % 82
Attenuations (dB/m)
Frequency (MHz)
5 0,01
47 0,05
90 0,06
200 0,09
500 0,14
800 0,18
1000 0,2
1350 0,24
1750 0,28
2050 0,3
2300 0,31
?
?
