Televes 19” 27U F600mm Floor Rack
Televes Wall Rack Cabinet 600mm Depth and 27U height
This rack cabinet can be wall or floor mounted. It is used to house active or passive equipment in fiber optic or data network installations, allowing different technologies to be housed in the same cabinet. It is 19″ and has depth adjustable side profiles, to allow the installation of different types of panels or equipment.

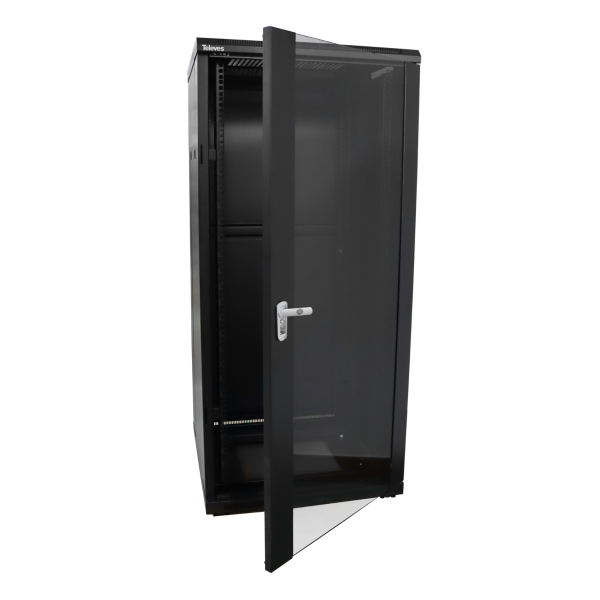

The tempered glass door allows the installed equipment to be visible. The front and rear doors are reversible and removable with flexible fit, which facilitates the work in the rack. Its side doors are also removable by means of pushbuttons to facilitate the work of rear connection.
It has a total capacity of 27U. It comes with numerical identification of each U screen-printed with laser. The side profiles are adjustable in depth. Prepared to install a 120x120mmm ventilation kit, which is installed when using active equipment or headers.
It is made of steel with polyester resin coating and lead-free pigments.**It includes 4 screw-on legs to adjust the height from 45 to 80mm.
Technical Specifications of the Televes 600mm Depth and 27U Wall-Mounted Rack Cabinet
Modular spacing (standard) in 19
Height mm 1342
Width mm 600
Depth mm 600
Number of rack units (HE) ? 27
Rack material ? Steel
Colour ? Black
Surface finishing ? Electrostatic powder
Number of doors ? 2
Rear door ? Yes
Rear door material ? Steel
Max. load capacity kg 1000
Max. load capacity (with wheels) kg 960
Max. load capacity (with legs) kg 600
Removable sides ? Yes
Installation type ? Ground
Type of profile rail ? L-shaped
Grounding ? Yes
