Cu/Cu Coaxial Cable Class A Euroclass Dca (100m)
Coaxial Cable T100Plus Cu/Cu Class A Euroclass Dca Televes 214121 (100m)

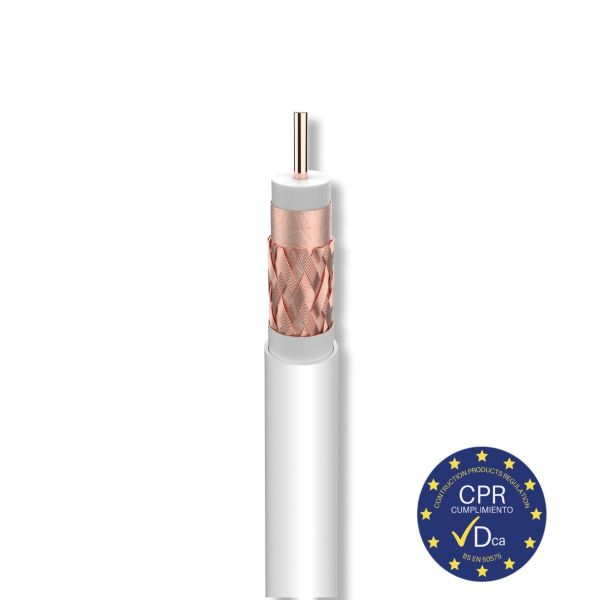

T100plus Coaxial Cable manufactured with Copper (Cu/Cu) conductor and mesh, with white LSFH halogen-free outer sheath for indoor installation.
Cable composed of 2 layers of shielding Class A that offers great shielding against possible interferences. Its Euroclass Dca classification gives it a good reaction in the event of fire, as it does not spread the flame and reduces heat emission.
Its conductors made of copper offer great response in high and low frequencies, with the least radioelectric resistance.
T100plus Cu/Cu double-shielded Class A coaxial cable with LSFH sheath and Euroclass Dca
What are the main characteristics of the Televes 214121 Coaxial Cable?
Copper conductors
Class A shielded
Dca-s2,d2,a1 Euroclass
The anti-migrating film prevents sheath’s additive agents and humidity migration to the inner cable, thus avoiding deterioration in the characteristics
White-colour external LSFH sheath
75 Ohm characteristic impedance
Available in reels of different lengths
What technical specifications does the Televes 214121 Coaxial Cable have?
Type T100plus
Standard EN 50117-2-4
EuroClass Dca-s2,d2,a1
Class A
Inner conductor ? mm 1,13
Material CU
Res. Ohm/Km <20
Dielectric ? mm 4,8
Material PEE
Overlapped foil Copper + Polyester
Braid Material Cu
Dimensions (Ncx Nsx ?) 16 x 4 x 0.10
Res. Ohm/Km <20
Coverage % 38
Anti-migrating film Yes
Petrol-Jelly No
Outer sheath ? mm 6,6
Material LSFH
Minimum bending radius mm 33.5
Screening attenuation @ 1GHz dB >75
Capacitance pF/m 55
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ?15
Velocity ratio % 82
Attenuations (dB/m)
Frequency (MHz)
5 0,01
47 0,04
90 0,05
200 0,08
500 0,13
800 0,16
1000 0,19
1350 0,22
1750 0,25
2050 0,26
2300 0,3
