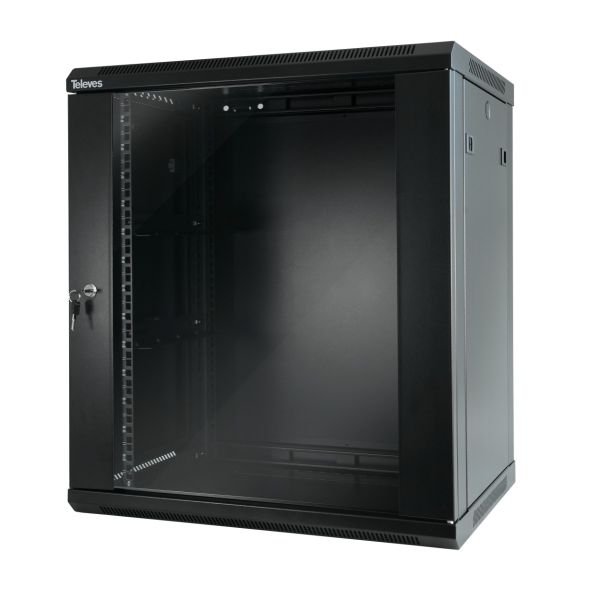

Televes 19” 15+2U F600mm Wall Rack
Armario Rack tipo Mural de Fondo 600mm y Altura 15+2U de Televes
This rack cabinet can be wall or floor mounted. It is used to house active or passive equipment in fiber optic or data network installations, allowing different technologies to be housed in the same cabinet. It is 19″ and has a depth of 600mm..
The tempered glass door makes the installed equipment visible. The front door is reversible and removable with flexible snap-in, which facilitates the work in the rack. Its side doors are also removable by means of pushbuttons to facilitate the work of rear connection.
It has a total capacity of 17U, it is 15U high with 2U extra that leverages the top and bottom end. It comes with numerical identification of each U silkscreened with laser. The side profiles are adjustable in depth. Prepared to install a 120x120mmm ventilation kit, which is installed when using active equipment or headers.
For wall installation, it includes an L-shaped mounting bracket that simplifies the installation process. It is made of steel with a polyester resin coating.
Technical Specifications of the Televes 600mm Depth and 15+2U Wall-Mounted Rack Cabinet
Modular spacing (standard) in 19
Height mm 771
Width mm 600
Depth mm 600
Number of rack units (RU) ? 15
Material ? Steel
Thickness mm 1.2
Colour ? Black
Surface finishing ? Electrostatic powder
Number of doors ? 1
Rear door ? No
Max. load capacity kg 60
Removable sides ? Yes
Installation type ? Wall / Ground
Type of profile rail ? L-shaped
Grounding ? No
