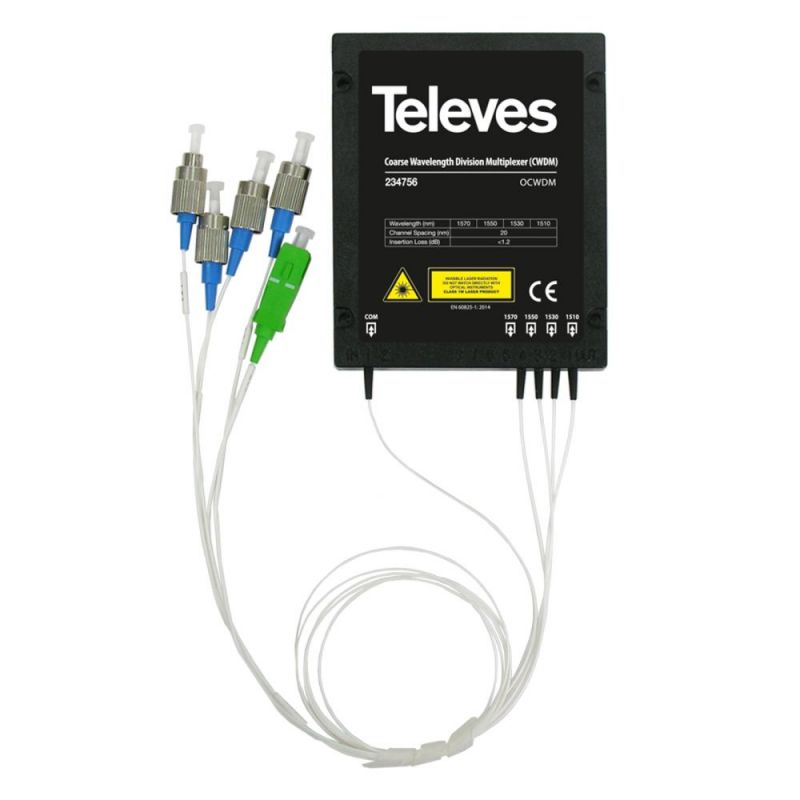

CWDM optical Multiplexer/Demultiplexer 1 input 4 outputs…
KSh105,050.00
FTTH device that captures four satellite and a terrestrial TV optical signals on a single fiber and separate them, providing in their optical outputs three satellite signals and a fourth one with satellite signal + DTT.
The four polarities and bands available on each optical output
FTTH device that captures four satellite and a terrestrial TV optical signals on a single fiber and separate them, providing in their optical outputs three satellite signals and a fourth one with satellite signal + DTT.
Features
All four polarities and bands available on each optical output
Optical SC/APC (COM) and FC/PC connectors
Very pleasant and reduced format
Specifications
Optical Channel Performance
Working wavelength GHz 1570 1550 1530 1510
Channel Spacing nm 20
Insertion losses dB < 1.2
Max. optical power .' dBm +22 (Demultiplexor COM->?)
General Optical Performance
Return losses dB > 45
Directivity dB > 50
PDL dB < 0.15
PMD ps < 0.15
Channel uniformity dB ? 0.6
Isolation channel adjacent dB ? 28
Isolation channel non-adjacent dB ? 40
Optical conectors Type COM: SC/APC CH31...CH34:FC/PC
Fibre length (with connectors) mm 500
General Performance?
Operating Temp ?C 0 ... +70
Protection index ? IP20
(1) To meet with Class
