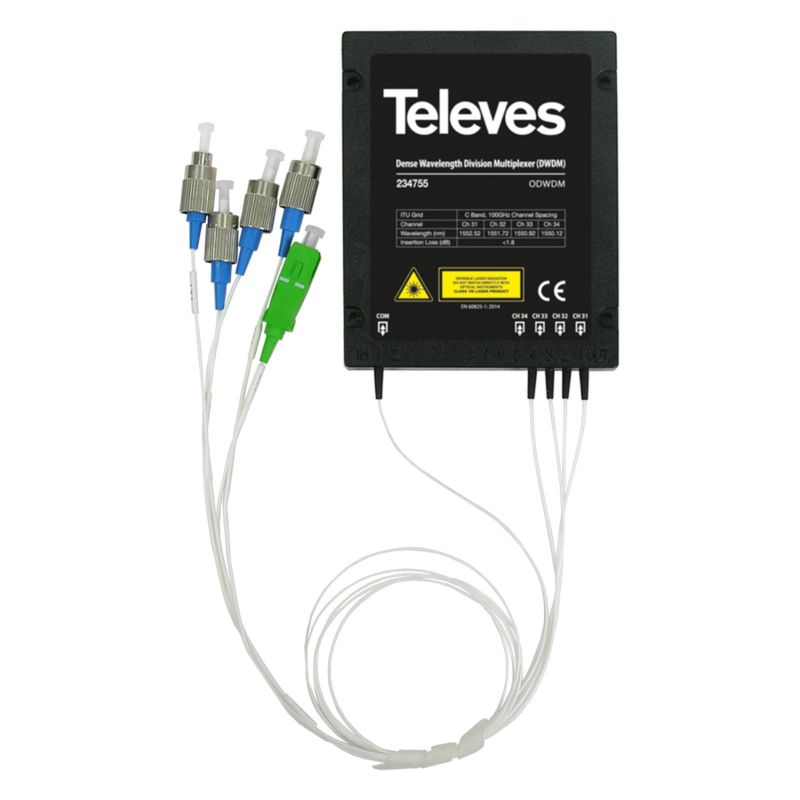

DWDM optical Multiplexer/Demultiplexer 1 input 4 outputs…

Name: DWDM optical Multiplexer/Demultiplexer 1 input 4 outputs... | +254720548999
SKU: TELEVES-234755
Price: 123586.00 KES
Availability: InStock

KSh123,586.00

FTTH device that captures four satellite and a terrestrial TV optical signals on a single fiber and separate them, providing in their optical outputs three satellite signals and a fourth one with satellite signal + DTT.

The four polarities and bands available on each optical output
FTTH device that captures four satellite and a terrestrial TV optical signals on a single fiber and separate them, providing in their optical outputs three satellite signals and a fourth one with satellite signal + DTT.
Features
All four polarities and bands available on each optical output
Optical SC/APC (COM) and FC/PC connectors
Very pleasant and reduced format
Specifications
Optical Channel Performance
Working wavelength GHz CH31 CH32 CH33 CH34
1552.52 1551.72 1550.92 1550.12
Channel Spacing nm 0.8
Insertion losses dB < 1.8 Max. optical power' dBm +22 (Demultiplexer COM->?)
General Optical Performance
Return losses dB > 45
Directivity dB > 50
PDL dB < 0.15 PMD ps < 0.15 Channel uniformity dB ? 0.6 Isolation channel adjacent dB ? 28 Isolation channel non-adjacent dB ? 40 Optical conectors Type COM: SC/APC CH31...CH34:FC/PC Fibre lenght (with connectors) mm 500 General Performance Operating Temp ?C 0 ... +70 Protection index ? IP20 (1) To meet with Class 1M.
