Dealer F.I. TV / SAT

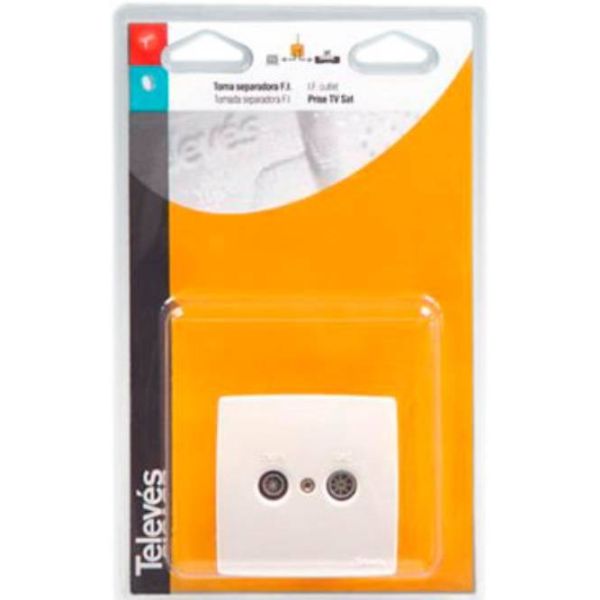

TV / SAT socket F.I. Separator Ref. 4301 from Televes.
Separator socket for satellite and terrestrial signals. The TV socket is fixed to the wall with screws.
It is square, made of ABS plastic and has dimensions of 8x8cm.
**
Technical Specifications of the TV / SAT Socket F.I. Separator Ref. 4301 from Televes.
Characteristics:
15-860MHZ
IN-R/TV Attenuation: <1dB
IN-SAT attenuation: >4dB
Return loss: >12dB
DC step: —–
950-2400MHz
IN-R/TV attenuation: >10dB
IN-SAT attenuation: <1.5dB
Return loss: >5dB
DC step: 400mA
