Splitter DTT-SAT F 5D 11dB Televes

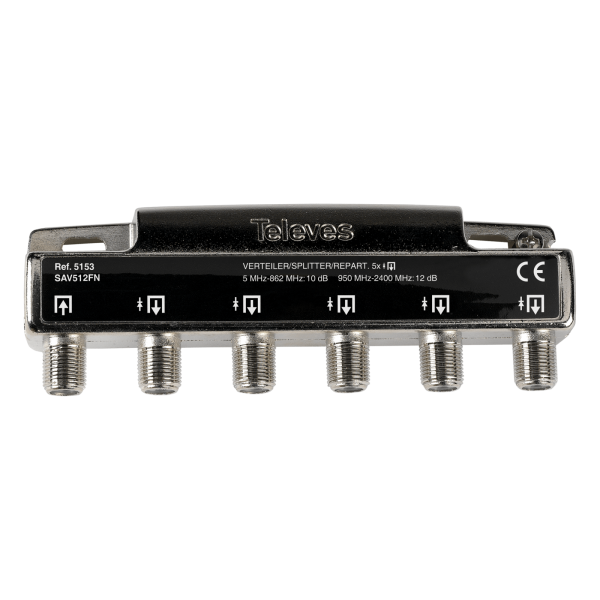

Internal 5-way Splitter Televes 5153
The Televes 5153 splitter is a 5-way distributor with F connectors, to distribute the terrestrial and satellite signal up to 5 TV wall sockets in the house.
This splitter is used in indoor installations. With attenuation of 10/12dB for the frequency band DTT-SAT (5-2400 Mhz). Includes DC current passage from the outputs to the input.
This indoor distributor with one input and 5 outputs is designed for both terrestrial and satellite installations.
What technical specifications does the Televes 5153 Splitter have?
Frequency range MHz 5-2400
5-862 950-2400
Number of outputs 5
Insertion loss dB 10 12
Rejection between outputs >20
DC Pass (max.) A 1 (Out?In)
