Derivative 2 Outputs Connector F 20 dB Televes
2-Direction Tap with F connectors (20 dB)

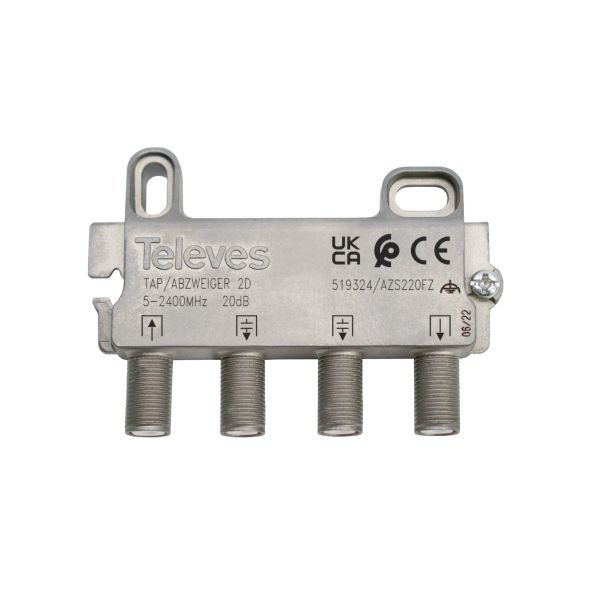

This Televes 519324 indoor diverter is a passive component with F connectors that consists of 1 input, 2 bypass outputs with 20dB of attenuation and 1 pass-through output with 1.5dB. It is used in SMATV installations.
Due to its technical characteristics, its installation on the second or third floor is recommended, since its attenuation losses are 12dB. Its installation is very simple, it can be mounted screwed on the wall, on the rack with plates with nuts or on a DIN rail.
This diverter works in the frequency range 5-2400MHz, making it suitable for both terrestrial and satellite signals. It has great armor and is made of Zamak.
Technical Specifications of the 2-Direction Tap with F connectors (20 dB)
Frequency range
MHz
5 … 2400
Number of outputs ?
2
Inputs/Bands ?
TERR
SAT
Passage losses
dB
1,5
2
Bypass losses
dB
20
19
Rejection between referral
dB
> 20
> 20
Max Voltage
Vdc
24
Max current
mA
350
DC step ?
in.?out.
