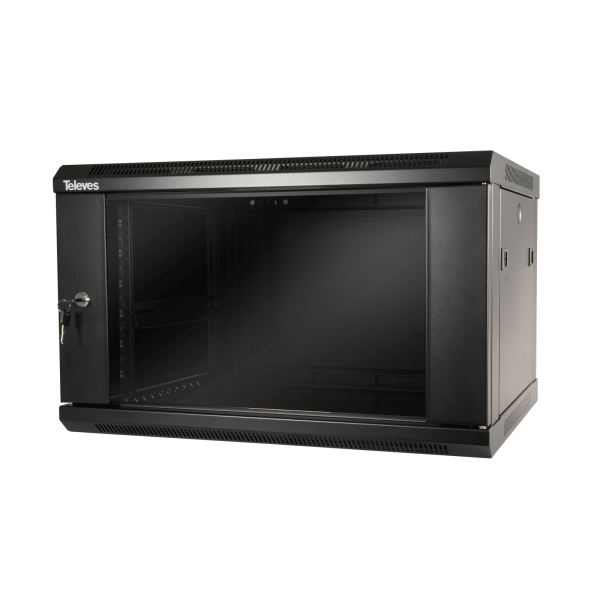

Wall/Floor Rack 19″ 6+2U Depth 450mm (Disassembled)
Wall/Floor Rack 19″ 6+2U 450mm Depth Televes 533105
High resistance and durability rack cabinet to introduce network equipment, allowing them to be visible and protected under lock and key in this steel structure. Compatible for fiber optic, data cable or coaxial cable applications, being able to group all technologies in the same frame.
This rack includes two 1U cable gland panels for the top and bottom (2U), leaving 6U of capacity. That is why its total capacity is 8U.
Rack designed for wall or floor installation, supports a maximum load of 60kg inside. Dimensions (W x H x D): 600mm x 370mm x 450mm. It has a reversible and removable front door and hinged folding side doors.
It offers good natural ventilation to house active equipment, with the possibility of installing fans.
ATTENTION! This rack is supplied disassembled in a 680x550x170mm box.
19″ wall/floor rack cabinet with 6+2U capacity and 450mm depth (Disassembled)
What are the main characteristics of the Televes Rack 533105?
High strength and durability: made of steel, with a coating based on polyester resins and lead-free pigments
Loading capacity up to 60kg
Extremely easy installation and use: reversible and removable front door with flexible sockets and hinged folding side doors
Installation of different types of panels or equipment: lateral profiles are depth-adjustable
Safety: Tempered glass, lockable hinged front door
Natural ventilation, with forced ventilation option
Laser marking: numerical identification of each “U”
Black colour (RAL 9004)
Includes 1U cable panels (2 units)
Upper and bottom adjustable covers for cabling
Indoor installation (IP20)
A 120x120mm ventilation kit can be incorporated for the installation of active equipment, such as headends
