Derivative 4 Outputs Connector F 8 dB Televes
4-Way shunt with F connectors (8 dB)

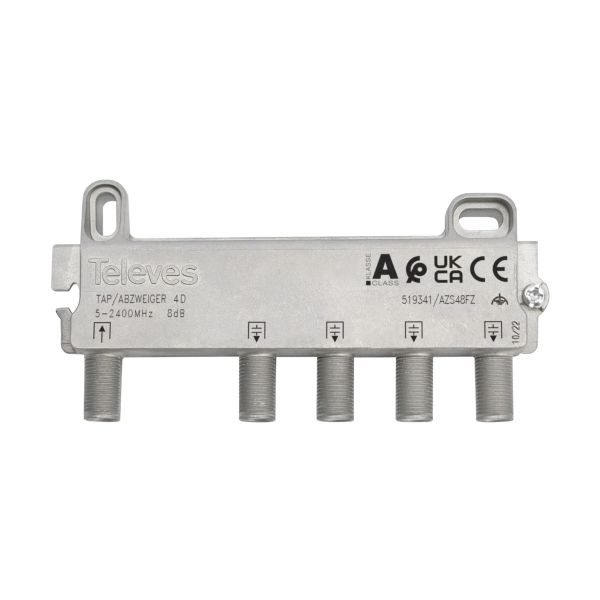

This indoor shunt**519341 from Televes is a passive component with F connectors consisting of 1 input,**4 shunt outputs with 8.5dB attenuation for Terr and 9dB for Sat. It is used in SMATV installations.
Due to its technical characteristics, its installation is recommended on the first floor, since its attenuation losses are 8.5dB. Its installation is very simple, it can be mounted screwed on the wall, on the rack with plates with nuts or on DIN rail.
This shunt works in the frequency range of 5-2400MHz, so it is suitable for both terrestrial and satellite signals. It has a large**armor**and is made of**Zamak.**
Technical Specifications of the 4 Secondary Output Diverter with F Connectors (8.5 dB) 519341
Frequency range MHz 5 … 2400
Number of ways ? 4
Floors ? 1
Inputs/Bands ?
TERR SAT
Tap losses dB
8.5 9
Rejection between taps dB
> 20 > 20
Connectors ? “F” female
