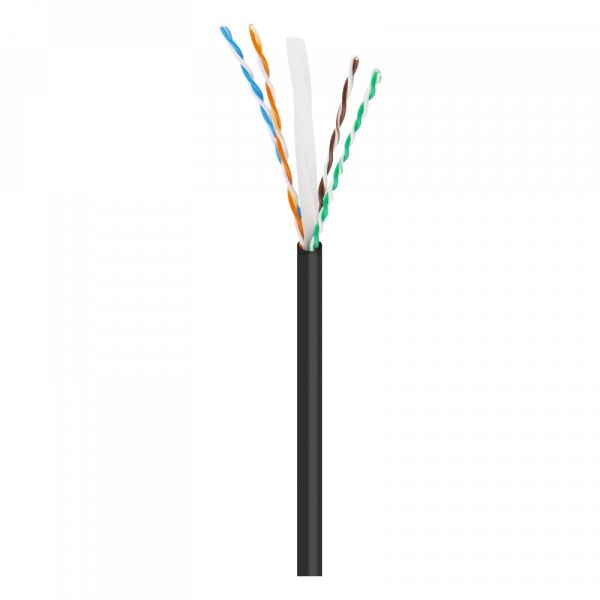

UTP Cable Cat.6 Fca Outdoor PE Black 305m Televes
UTP Cable Cat.6 Fca Outdoor PE Black**305m Televes 212201
5-pair UTP (unshielded) and Euroclass Fca cable, with solid Copper (Cu) conductor and black PE sheath for outdoor installation. 100 ohm impedance.
Category 6 data cable for Gigabit Ethernet applications. Category 6 is the evolution of category 5E and allows to reach a transfer speed of up to 1Gbps, up to 250MHz in each pair. Cable for 10Base-T, 100Base-T and 1000Base-T installations.
Supplied in a 305 meter dispenser.
Category 6 UTP data cable with PE sheath for Outdoor in Black, supplied in 305m spool.
What technical specifications does the Televes 212201 UTP Cable have?
Type DK6000
U/UTP
EuroClass Fca
Class Cat 6
Conductor Material Solid copper
? (mm) 0.55 ? 0.02
Conductor type AWG 23
Conductor isolation Material Polyehtylene
? (mm) 0.95
Filler ?Crucifix? Yes
Outer sheath Material Polyehtylene
? (mm) 6.2 ? 0.3
Thickness (mm) 0.55 ? 0.05
Color Black?
Rip cord Yes
Reaction to fire CPR Fca
Nominal impedance ? 100 ? 15
Max. conductor resistance ?/Km < 117
Nominal velocity % 72
Working voltage V 300
?
? ? ? ? ? ? ?
FREQUENCY ATTENUATION NEXT PS-NEXT ELFEXT PS-ELFEXT RETURN LOSS
(MHz) (dB/100m)
0,772 1,8 76 74 70 67 -
1 2 74,3 72,3 67,8 64,8 20
4 3,8 65,3 63,3 55,7 52,7 23
8 5,4 60,8 58,8 49,7 46,7 24,5
10 6 59,3 57,3 47,8 44,8 25
16 7,6 56,3 54,3 43,7 40,7 25
20 8,5 54,8 52,8 41,7 38,7 25
25 9,6 53,3 51,3 39,8 36,8 24,3
31,25 10,7 51,9 49,9 37,9 34,9 23,6
62,5 15,5 47,4 45,4 31,8 28,8 21,5
100 19,9 44,3 42,3 27,8 24,8 20,1
125 22,4 42,8 40,8 25,9 22,9 19,4
200 29,2 39,8 37,8 21,7 18,7 18
250 33 38,3 36,3 19,8 16,8 17,3
?
?
