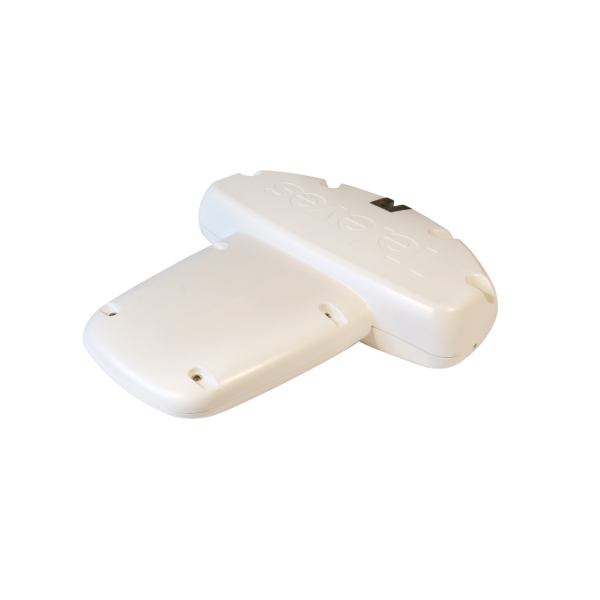

Dinova LTE 5G DTT Antenna (C21-48) 34dB + Power Supply
Kit Antenna DTT-UHF Dinova LTE 5G (C21-48) 34dB Televes 144022
This Dinova UHF antenna kit includes connector and cap + Televes PicoKom 579401 power supply.
Dinova Boss is a directive high gain (34dB) DTT antenna. Its intelligent automatic gain BOSS system guarantees correct signal reception in any situation, combating signal variations or fading, as well as signal saturation in case of receiving high levels. Its integrated 5G LTE filter eliminates any telephone interference from the 2nd Digital Dividend.
A compact and discreet design antenna, designed not to cause a great impact on the aesthetics of the facades; ideal for balconies, historic buildings or protected spaces. Dinova is fully protected against corrosion from salinity, humidity and other adverse climatic phenomena, making it perfectly suitable for coastal areas.
Dinova LTE 5G antenna kit with connector and cap + PicoKom power supply.
What are the main characteristics of Televes’ Dinova 144022 antenna?
High dynamic range: It allows high-quality TV reception in a wide variety of critical situations, from areas where signals are very weak to installations with high reception levels
DTT coverage area enhancement
Very high gain
A more stable reception: supports signal variations or fading without any impact on the TV installation
Protected against corrosion
Low power consumption in intelligent mode
LTE-Ready: equipped with LTE filters to avoid mobile phone signals caused by the use of 5G/4G devices in the environment
Mounting options for both horizontal and vertical polarizations
Easy mounting.
What technical specifications does the Televes Dinova 144022 antenna have?
?Working band MHz LTE700 470 – 694
?Channels LTE700 21-48
?BOSS Mode OFF ON
?Maximum gain dBi 4-7 34*
?Output level dB?V —- Auto*
?Noise figure dB —- 2,5
?Supply voltage V 0 12-24
?Maximum current mA —- 45
?Protection index IP 53
?Wind load N 70 (@ 130 km/h)
96 (@ 150 km/h)
