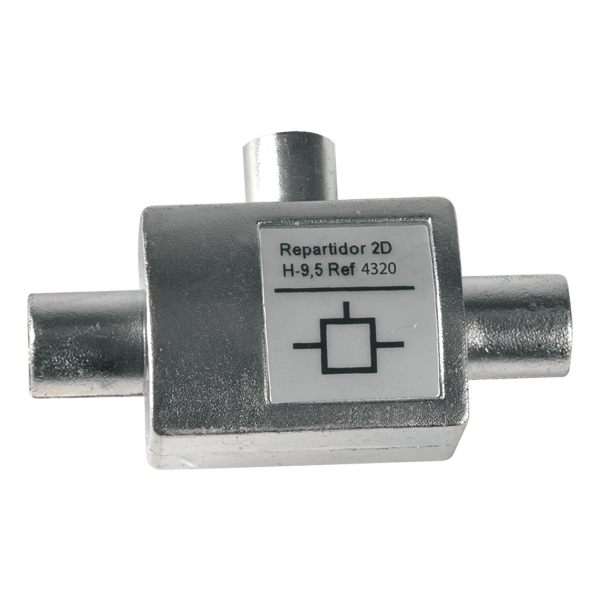

DTT CEI 2D Splitter (1 Male – 2 Females) Televes
Inductive Distributor CEI 1M2H Televes 4320
Armored TV splitter with 1 CEI Male input and 2 CEI Female outputs, for VHF/UHF frequency band (109-862MHz). Accepts DC current flow for 1 of the outputs. It only has 4dB of attenuation.
This splitter is commonly used to plug it into TV outlet and thus carry the DTT signal to 2 televisions. It can be directly connected to televisions, receivers or other equipment with CEI connection. It also serves as a mixer.
Televes 2D 1M2H TV Splitter with Televes DC passage for 1 output.
What technical specifications does the CEI Televes 4320 Splitter have?
Bands V/U
Through losses
dB 4
Tap loss dB >20
Outputs with DC bypass 1
Output connectors MHz 2H 9,5
Input connectors mm 1M 9,5
