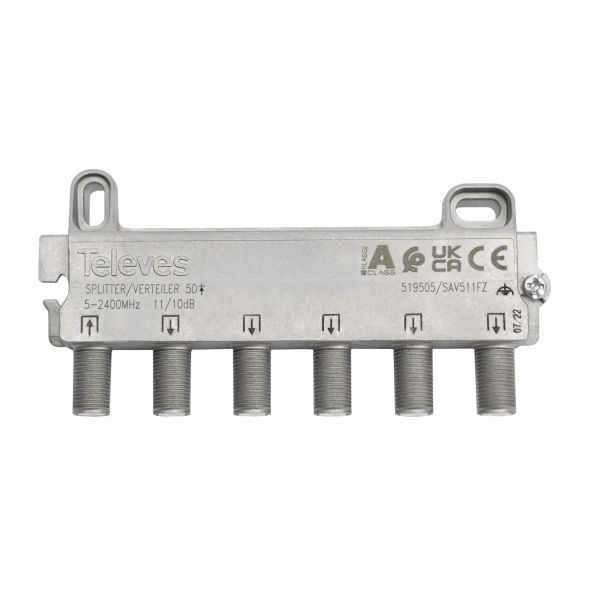

Distributor with 5 TDT and SAT Outputs with Televes 11 dB F Connector
TDT-SAT distributor with 5 Outputs Connector F 519505 from Televes
The distributor is a small 5-output distributor with an F connection that allows working in the frequency range from 5 to 2400 MHz.
This distributor has good performance at high frequencies, with low attenuations and high shielding efficiencies. Improves step losses and provides good shielding.
Includes grounding screw. Great mounting flexibility since it can be installed screwed to the wall, on rack plates or on a DIN rail (in the latter case, with adapter 519901).
Its connection is very simple since the 10** inclination angle it has makes it easier to screw in the F connectors. In addition, it allows the wiring to pass through its rear part.
This range of distributors can be chained together, through the ground screw itself, so that we will only use a single grounding cable.
Technical Specifications of the TDT-SAT Distributor with 5 Outputs Connector F 519505 from Televes
Frequency range MHz 5 … 2400
Number of outputs ? 5
Inputs/Bands ?
TERR SAT
Through losses dB
11 10
Rejection between outputs dB
> 20 > 20
Connectors ? “F” female
Voltage max. V 24
Max. current mA 350
DC pass ? Out?In
