Optical Multiplexer Module (WDM) 1310/1490 – 1550nm

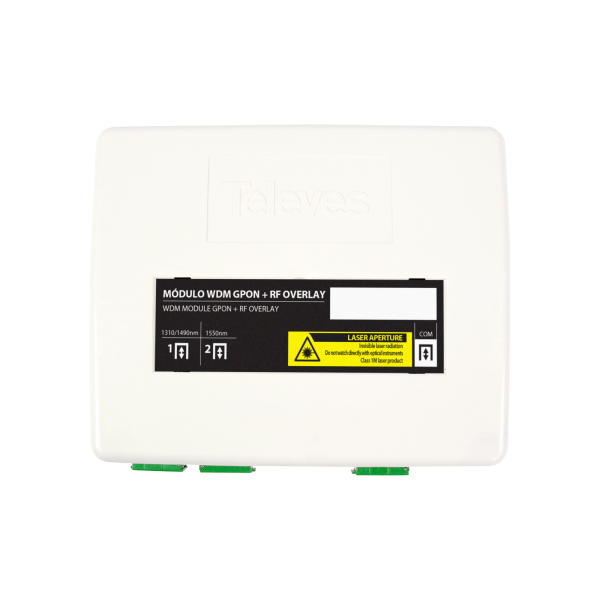

Optical Multiplexer Module (WDM) 1310/1490 – 1550nm Televes 234740
Passive device that multiplexes/demultiplexes**two SC/APC optical inputs: one of 1310/1490nm (GPON) and the other of 1550nm (RF Overlay). For application in G/EPON networks.
White ABS plastic housing, compact and resistant, for wall or DIN rail installation.
Optical multiplexer module (WDM) with 2 SC/APC inputs: 1310/1490nm (GPON) and 1550nm (RF Overlay)
What technical specifications does the Televes 234740 Optical Multiplexer Module have?
Wavelength Operating nm 1260…1620
Transmission nm 1540…1565
Reflection nm 1270…1350 & 1475…1505
Fibre type Single-Mode (9/125)
Connector type & fibre color COM SC/APC (Black)
Transm. / Reflec. SC/APC (White)
Insertion loss Transm. / Reflec. dB <0,5
Return loss dB >50
Max. power supported dBm +25
Operating temperature ?C -5…+45
