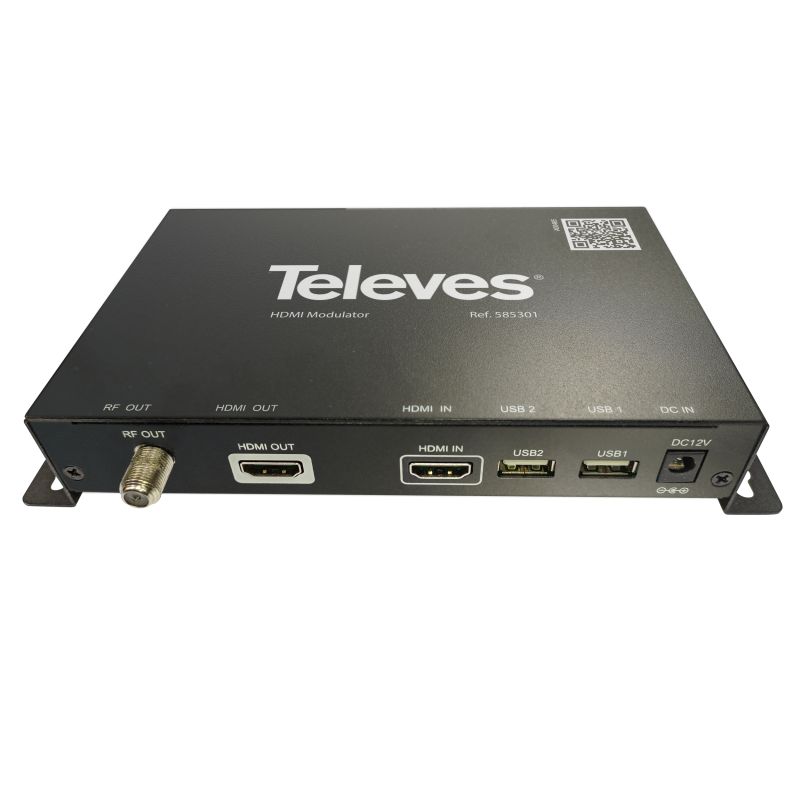

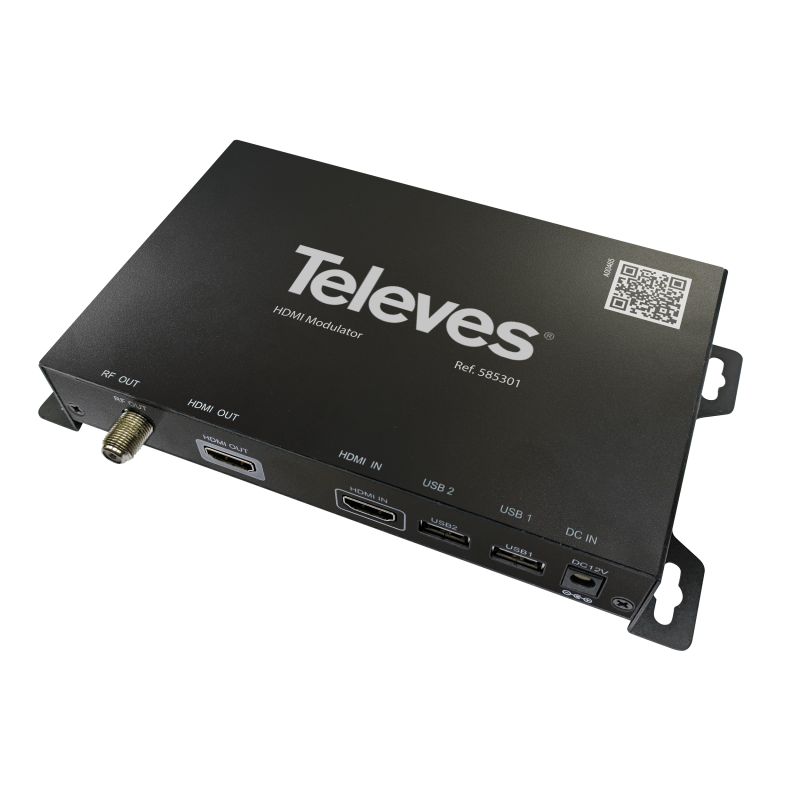

DVB-T 1e modulator: HDMI – 1 Mux (174…230/470…862MHz)…
KSh65,996.00
**
HD Encoder / Modulator – DVB-T
Converts HD signals into DTT channels, with HDMI pass-through
Device that losslessly transforms a digital video and audio signal (HDMI) into a modulated FullHD signal (MPEG-4 / H.264) in a DVB-T channel. This digital signal comes from an external SD / HD source: satellite receiver, DVR / NVR, DVD, CCTV, etc.
It is equipped with an HDMI pass-through loop to connect the input signal to the TV / monitor.
The channel generated by the HDMI source can be mixed with the DTT signal and then distributed through a single coaxial cable. Therefore, its content can be viewed on all receiving devices in the system.
The device allows its configuration through an App for Android 6.0 / iOS 13 or higher, through a Bluetooth connection.
Stands out for
Fully configurable: input format, transport stream configuration, output channel configuration …
Perfect synchronization between image and sound
High-quality encoding thanks to VBR (Variable Bit Rate)
Device configuration through a simple and intuitive App (Android / iOS)
Energy efficiency and low consumption
Characteristics
HDMI pass-through loop (in / out)
Video encoding in MPEG-4 (H.264) format
Multiple resolution support (up to 1080p @ 60fps)
Automatically detect input resolution
Video loop playback via USB port (.TS format)
Firmware update via USB
Specifications
ENCODER
Video Coding H264 Profile Level 4.0
Interface HDMI IN / HDMI OUT (loop through)
Input resolution 1080p Max.
Output resolution Auto, 1080p, 720p, 576p, 480p
Bit rate Mbps 2, 4, 6, 8, 12, 18
Audio Interface HDMI IN / HDMI OUT (loop through)
Format MPEG-2 / AAC / AC3
Bit rate kbps 192
Modulator
Standard DVB-T (ETSI EN 300 744)
Modulation QPSK, 16QAM, 64QAM
Frequency range MHz 174 … 230/470 … 862
MER dB 35 typ.
RF output level dB?V 85 … 105
RF adjustment level dB 20 (1dB per step)
Bandwidth MHz 6, 7, 8
USB
File system
FAT 12/16/32
Maximum file size: 4GB *
Recommended memory GB 32 (USB device)
Video playback Only file “video.ts” (in root of USB)
SYSTEM
Management Bluetooth & App
Operating System App Android 6.0 or higher
iOS 13 or higher
FW update USB
GENERAL
Feeding Vdc 12
Consumption TO one
Operating temperature ?C 5 … 40
RH % 80 (@ 30?C)
Editable fields SERVICE NAME, NETWORK NAME, PROVIDER NAME, TS ID, NETWORK ID, ORIGINAL NET ID, LCN, NIT VERSION, PRIVATE DATA, Country
Application example
