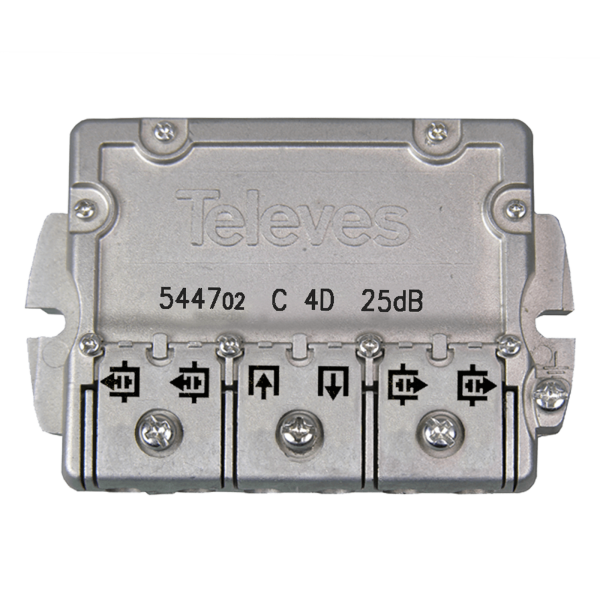

EasyF 4W Tap (25 dB)
Indoor Tap with 4 outputs EasyF (25 dB)
SMATV (5 – 2400 MHz) type C shunt of the Televes brand for the interior of the house, with fast flange type connections.
This shunt has 4 outputs and 25 dB of losses, recommended for installation in plants 6 and 7.
It offers an easy and fast installation since its EasyF connection does not require any type of connector. You just have to strip the cable and insert it into the shunt itself.
**
4-output shunt with flange for terrestrial and satellite signals with high attenuation 25dB designed to be installed on floors 6 and 7.
What are the main features of the Televes 544702 shunt?
EasyF connection system: easy to install, savings on mounting
Made of Zamak, high shielding
Outstanding reliability: automated manufacturing using new generation micro-components
Improves through losses
Outstanding electrical behaviour: impulsive noise reduction
Grounding screw provided
Bidirectional DC pass between input and pass output
What technical specifications does the Televes 544702 shunt have?
Frequency range MHz 5-2400
5-862 950-2400
Number of outputs 4
Floors 6 & 7
Through loss dB 0,5 0,5-2,1
Tap loss 26 24
Rejection between taps >30 >25
DC Pass (max.) mA 300 (in.?out.)
