Nevoswitch 5×5 MATV / FI amplifier with gain of 27 / 25dB

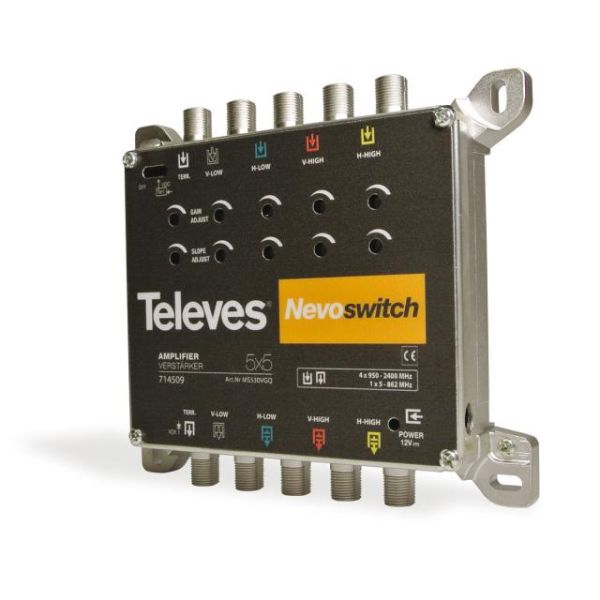

Televes 5 inputs and 5 outputs Nevoswitch amplifier
The Televes 714509 NevoSwitch amplifier is a 5-input amplifier (one terrestrial and the four polarities of a satellite) that allows increasing the number of users of the installation by optimizing the signal that reaches each one.
This Televes amplifier has an approximate amplification of 27dB in terrestrial and 25dB in satellite.
The Televes NevoSwitch amplifier allows, by means of a switch, to activate or deactivate the passage of current for the feeding of preamplifiers or active antennas.
NevoSwitch amplifier with 5 inputs (one terrestrial and the four polarities of a satellite) that allows increasing the number of users of the installation by optimizing the signal that reaches each one.
What technical characteristics does the 714509 amplifier have?
High output level
Switch to feed ground preamps (VDC) or not (OFF)
Adjustment of gain (10dB) and slope (7dB) in an individualized manner
The feeding is carried out by the VL input / output
Very compact
Made of zamak
Identification of colors at the entrance and at the exit
12V power
Reduced consumption
What technical specifications does the 714509 amplifier have?
Type 5×5
Frequency margin MHz SAT 950 … 2400
RF 47 … 862
Input level dB?V SAT EN50083-3
IM35dBc 110
TERR DIN 45004-B 110
DB SAT gain 25
TERR 27
Regulation 10
Slope 0 … 7
DB insulation> 25
Step DC In-Out / Out-In
Max consumption total mA PSU (3) 160
Temperature Range ?C -5 … + 45
IP protection index 20
Related products
-
Read moreTELEVES Nevoswitch 9x9x16 CASCADE 9 In 16 Out c/w Output Earth Bar Only 2
Year Warranty *Special Order! NCNR – Check Lead Time* Part of the range of 9 input multiswitches
(8 satellite polarities + Freeview), available in 8, 12, 16, 24 and 32 user
outputs. Expand the number of users by cascading two or more units. Small and
compact design to provide an easy and quick installation. The range includes a 9x line amplifier with
25 dB average gain for Satellite inputs and 27 dB gain for Terrestrial with
DC pass. 75 ohms switch included to
load the unit (standalone) or not (cascade configurations). Highlights: Radiation immune thanks to its
zamak made chassis. All switch references are valid for standalone, star or
cascade configuration. Selectable IF gain (+10 dB) for each group or 8 users
to balance the output signals. Multiple powering options: mains and line
powered. ECO mode: the overall consumption is reduced as the number of users
decreases. Main features: Small sized
design: Make the most of space to accomodate more TV subscribers. Use the
same multiswitch in either star/cascade or standalone configuration.
Independent amplification of every feed (8 satellite plus Freeview). Multiple
powering options: mains and line powered. Adjustable gain and equalization to
achieve the best performance for every system’s requirements. -
Read moreTELEVES Nevoswitch 15dB Tap 5 In – 5 Trunk + 5 Tap Out 2 Year Warranty
*Special Order! NCNR – Check Lead Time*
CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT Highlights: Chassis
made of zamak: radiation inmune. Suitable for star/cascade system
configurations. Independent Output Level adjustment (except QUAD compatible
units). Low consumption ECO mode. Thanks to the ECO system, the consumption
decreases as the number of users is reduced. Main Features: Small size and
compact design. Cascadable and terminal configuration in a single reference.
Independent line-amplifier level adjustment. Multiple powering options (Jack,
VLow, Terrestrial Input/Output and user outputs) Independent output level
adjustment. -
Read moreTELEVES Nevoswitch 20dB Tap 5 In – 5 Trunk + 5 Tap Out 2 Year Warranty
*Special Order! NCNR – Check Lead Time*
CONFIGURABLE ELEMENTS FOR BETTER SIGNAL ADJUSTMENT Highlights: Chassis made of zamak:
radiation inmune. Suitable for star/cascade system configurations.
Independent Output Level adjustment (except QUAD compatible units). Low
consumption ECO mode. Thanks to the ECO system, the consumption decreases as
the number of users is reduced. Main Features: Small size and compact design.
Cascadable and terminal configuration in a single reference. Independent
line-amplifier level adjustment. Multiple powering options (Jack, VLow,
Terrestrial Input/Output and user outputs) Independent output level
adjustment. -
Read moreTELEVES Nevoswitch 17x17x12 CASCADE 17 In 12 Out c/w Output Earth Bar Only 2
Year Warranty *Special Order! NCNR – Check Lead Time* Highlights:
10 dB Low Gain (LG) / High Gain (HG) switch for the attenuation of the
satellite input signal for each 8-user group Remote power feeding using VL
Current circulation between all inputs and cascades Compatible with
return-channel applications European design, quality, and manufacturing Main features: Very compact Made of zamak Input and output
colour identification Available ECO mode Selector switch to shift between cascade
and terminal modes 12 V power supply Low power consumption -
Read moreTELEVES Nevoswitch QUAD 9x9x8
CASCADE c/w 1.5A PSU – Receiver or
Line Powered (Earth Bars Not Included) 2 Year Warranty *Special Order! NCNR –
Check Lead Time* Highlights 10 dB Low Gain (LG) / High Gain (HG) switch
for the attenuation of the satellite input signal for each 8-user group
Optimized for Quad LNB thanks to a 22 KHz generator Compatible with
return-channel applications European design, quality, and manufacturing Main features Very compact Made of zamak Input and output
colour identification Available ECO mode Selector switch to shift between cascade
and terminal modes 12 V power supply Low power consumption
