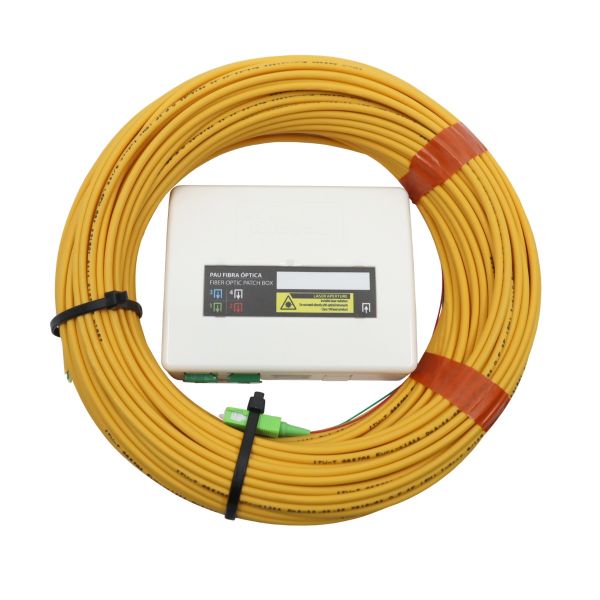

Fiber Optic Patch Box 2 SC/APC Outputs + 2 Fibers 15m Televes
Fiber Optic UAP 2 SC/APC Outputs + 2 Fibers 15 Meters Televes 231540
Pre-terminated 2-way fiber optic patch box**that includes 15-meter single-mode 2-fiber cable, with SC/APC connectors at one end, since the other end is to merge with the fiber supply network, or to perform the connectorization of FO connectors.
Optical UAP to locate in the Network Termination Registry (RTR) in new construction buildings ICT2. Due to its design, it can also be used in other facilities such as: old buildings, workshops, classrooms, work tables, connection cabinets, etc.
Since this fiber optic PAU is pre-connected at one end only, the installation is done from the RTR to the secondary register and when it reaches the telecommunications enclosure, it is connected to the network interconnection register, performing a fusion with a**pigtail. If there is a lot of excess cable, the excess is normally cut before performing the fusion with the pigtail so that the installation is perfectly finished and tidy.
The connectorized fiber that it includes provides the installer with greater comfort and agility in the assembly, by only having to perform the fusion at the connection point of the supplier company. Also included are 2 SC/APC female to female adapters, 2 heat shrink sleeves, 2 cable ties and hardware for installation.
Fiber Optic UAP pre-terminated 2 SC/APC Outputs + 2 Fiber Pigtails of 15 Meters
What are the main characteristics of the FO UAP Televes 231540?
Made of robust ABS plastic
With a capacity of up to 4 SC/APC output connectors
Multi-anchoring system: DIN rail, wall or outlet
ITU-T G657A2 single-mode fibres
Identifying label
Equipped with 2 “SC/APC” female-to-“SC/APC” female adapters (with self-locking cover)
100% european quality: manufactured by Televes in Spain
Dca-s2,d2,a2 Euroclass
White colour (RAL 9003)
6 inputs, pre-cut on its sides, for FO access
Back input for SC connector
Back input for FO and SC connector
Pre-cut input at the bottom, for access to a distribution frame (SC/APC)
Equipped with: 2 heat-shrink sleeves, 2 cable ties, installation screws
