F.O. Socket Kit with Keystone, Adapter and 10m SC/APC Hose
F.O. Socket Kit with Keystone, Adapter and 10m SC/APC Hose

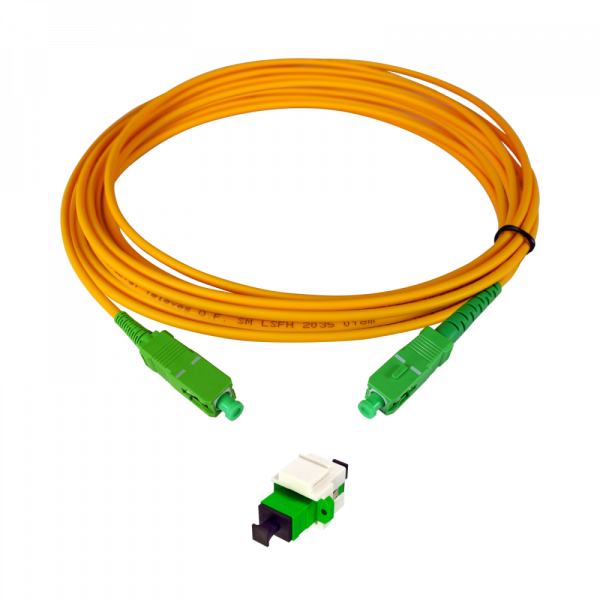

Complete kit for the installation of a fiber optic outlet, in accordance with the ICT-2 regulation. A keystone module, adapter and 10 meter SC/APC hose are included.
The keystone module allows the installation of the female SC/APC fiber adapter in a standard RJ45 jack faceplate. This module, together with the adapter, form a fiber optic terminal socket.
The 10 meter Euroclass Dca LSFH fiber patch cord, pre-connectorized at both ends (SC/APC), allows signal transmission from the optical PAU to the socket. Specially designed with a shorter boot at one of its ends, avoiding increases in attenuation due to curvatures.
Technical Specifications of F.O. with Keystone, Adapter and 10m SC/APC Hose
?
Euroclass ? Dca
Euroclass: Smoke Production ? s2
Euroclass: Flaming droplets ? d2
Euroclass: Acidity ? a1
Fiber core type ? sm_g657a2
Optical fiber type category ? OS1
Fiber core diameter ?m 9
Fiber cladding diameter ?m 125
Coating buffer diameter ?m 250
Cable structure ? ajustado
Plastic buffer diameter mm 0.85
Outer sheath Diameter mm 3
Outer sheath Material ? LSFH
Blocking jelly ? No
Attenuation 1310nm dB/km < 0.8
Attenuation 1490nm dB/km < 0.8
Attenuation 1550nm dB/km < 0.8
Insertion losses in connector 1 dB < 0.5
Insertion losses in connector 2 dB < 0.5
Return losses in connector 1 dB > 60
Return losses in connector 2 dB > 60
Optical connector type 1 ? sc
Polishing type (Optical connector 1) ? apc
Optical connector type 2 ? sc
Polishing type (Optical connector 2) ? apc
Short tension N 450
Long tension N 200
Structure reinforcement element ? Aramida
Short crush (@100mm) N 500
Long crush (@100mm) N 100
Minimum bending radius mm 15
Operating temperature ?C -20 … 70
