Fiber optic patch cord SC / APC 0.2 meters 232622 from Televes
Adaptation hose of FO 232622 from Televes

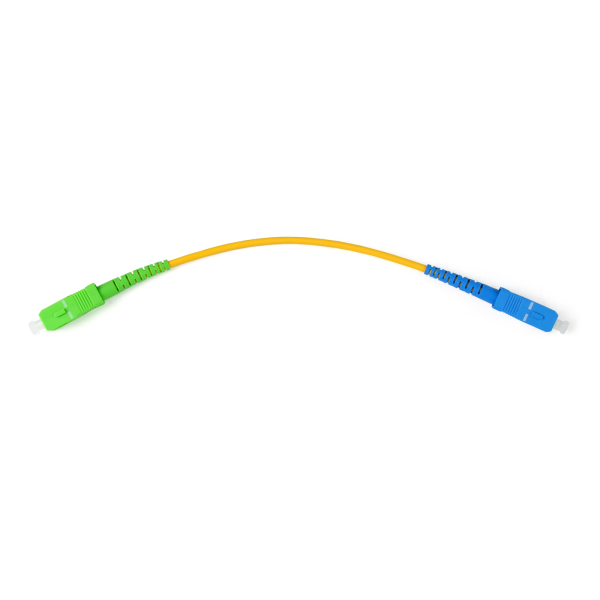

Do you have a fiber optic telecommunications rack cabinet and want to make the connection between them** Televes 232622 fiber optic patch cord is a single-mode 0.2 meter Patch Cord (SM) pre-connectorized with a SC / APC connector on one end and SC / PC on the other, to adapt different polishings on the optical equipment connection.
The cover is LSFH and its use is recommended indoors.
It is supplied in an individual bag.
The fiber optic hose 232622 is a single-mode pre-connected hose with an SC / APC connector on one end and SC / PC on the other.
What technical characteristics does the 232622 hose have?
Type of fiber ITU-T G.657A2
Cover LSFH, yellow color
SC connectors with APC polishing on one end and PC on the other
Length 0.2m
What technical specifications does the 232622 hose have?
Fiber Type Single Mode
Housing material Type LSFH
DB attenuation
? 0.4 (1310nm)
? 0.4 (1550nm)
Return losses (in each patch) dB ? 55
Minimum bend radius mm 15
Outer diameter of the fiber mm 3
