DVB-T/T2/S/S2/SX/C + CI + FO Mosaiq6 Field Meter (Includes Transport Bag)
Mosaiq6 Portable Field Meter for Professional Installers

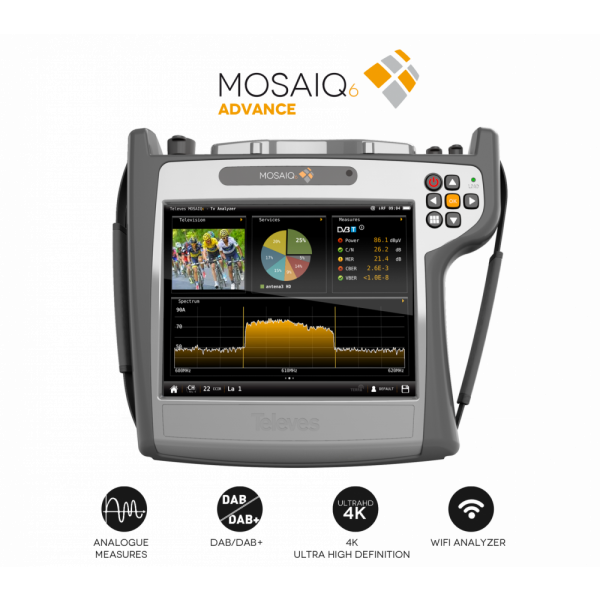

The Mosaiq6 is a high performance portable tool for professional installers. This field meter has a wide range of advanced features as well as excellent measurement accuracy.
It has an 8** touch screen with gesture control, designed to take optimal advantage of touch gestures such as single or double press, long press, drag, slide, zoom in or out, etc.
We can display up to 6 widgets on the screen in the format and measurements you prefer, so we have total flexibility in configuration.
In addition, it is portable, it has a high capacity and quality Li-Ion battery that lasts up to 4 hours. But if this is not enough, it has a replaceable battery that can be charged on the charger independently. Includes an ergonomic carry bag.
Technical Specifications of the Mosaiq6 Portable Field Meter for Professional Installers
?
MOSAIQ6
General Specifications
Pantalla 8? touch screen TFT 1024×468 full color
Weight 2150 g
Dimensions 250x210x60mm (HxWxD)
Battery Li-ion (7,2VDC, 9000mAh)
intercambiable en campo
Autonomy > 4 hours
Interfaces ETH, USB, HDMI, Audio Out (Jack), FC/APC optical fiber connector, GPS antenna connector
Storage 32 GB
Technical Specifications
Frequency
Range 5 – 3300 MHz
Accuracy 1 KHz
Tuning Frequency or channel
Spectrum analyzer
Span 100 KHz, 1, 5, 10, 20, 50, 100, 200, 500 MHz, 1,0, 2,0, 3,3 GHz and other (any value between 100 KHz and 3,3 GHz)
RBW 500 Hz, 1, 3, 5, 10, 30, 50, 100, 300, 500 KHz, 1, 3, 5 MHz
Marks Up to 4, with delta feature
Event trigger ?
Waterfall ?
Hold feature Maximum and minimum
Reference level Automatic and manual
DVB-T Digital measurements
Modulations COFDM (QPSK, 16QAM, 64QAM)
Power From 20 to 128 dB?V
CBER 9.9E-2 ? 1.0E-6
VBER 1.0E-3 ? 1.0E-8
MER Up to 40dB
C/N Up to 52dB
Echoes ?
MER by carrier ?
Constellation ?
Error packets ?
TILT ?
Attenuation ?
DVB-T2 Digital measurements
Modulations COFDM (QPSK, 16QAM, 64QAM and 256QAM)
Power From 20 to 128 dB?V
LDPCBER* 9.9E-2 ? 1.0E-6
BCHBER* 1.0E-3 ? 1.0E-8
Link Margin Up to 40dB
MER Up to 40dB
C/N Up to 52dB
Echoes ?
MER per carrier ?
Constellation ?
Error packets ?
TILT ?
Attenuation ?
Multiple PLP ?
QAM Digital Measures (ANNEX A/B/C)
Modulations 4QAM, 16QAM, 32QAM, 64QAM and 256QAM
Power From 20 to 128 dB?V
BER 1.0E-3 ? 1.0E-8
MER Up to 40dB
C/N Up to 52dB
Constellation ?
Error packets ?
TILT ?
Attenuation ?
DVB-S Digital Measures
Wideband
(only compatible HW) 230 – 2400 MHz
Power From 20 to 128 dB?V
CBER 9.9E-2 ? 1.0E-6
VBER 1.0E-4 ? 1.0E-8
MER Up to 20dB
C/N Up to 30dB
Constellation ?
Error packets ?
TILT ?
Attenuation ?
DVB-S2X Digital Measures
Wideband
(only compatible HW) 230 – 2400 MHz
Modulations QPSK, 8PSK, 8APSK, 16APSK and 32APSK
Power From 20 to 128 dB?V
LDPCBER* 9.9E-2 ? 1.0E-6
BCHBER* 9.9E-2 ? 1.0E-8
Link Margin Up to 10dB
MER Up to 10dB
C/N Up to 30dB
Constellation ?
Error packets ?
TILT ?
Attenuation ?
Multi TS ?
PLS scrambling ?
DVB-S2 Digital Measures
Wideband
(only compatible HW) 230 – 2400 MHz
Modulations QPSK, 8PSK, 8APSK, 16APSK and 32APSK
Power From 20 to 128 dB?V
LDPCBER* 9.9E-2 ? 1.0E-6
BCHBER* 9.9E-2 ? 1.0E-8
Link Margin Up to 10dB
MER Up to 20dB
C/N Up to 30dB
Constellation ?
Error packets ?
TILT ?
Attenuation ?
Multi TS ?
FM
Level ?
C/N Up to 52dB
RDS ?
DAB/DAB+ (**Opc. 596204)
Power From 20 to 128 dB?V
MER Up to 20dB
C/N Up to 30dB
BER* 9.9E-2 ? 1.0E-6
ANALOGUE TV (**Opt. 596203)
Level From 20 to 128 dB?V
V/A Up to 52dB
C/N Up to 30dB
Features
User-customizable widgets on screen Up to 6
Scan System with measurements and learning plan ?
LTE Check ?
F.O. Refs. 596101/02/05
F.O. Selectivo Refs. 596111/12/15
GPS Drive Test Opt. 596201
MPEG2, MPEG4 Full HD channels visualization ?
4K visualization Opt. 596205**
MPEG info SID, VID, AID, Resolution, Profile, Audio Bitrate, Video Bitrate, Resolution info
IPTV Analyzer ?
WiFi Analyzer 2,4GHz and 5GHz (Opt. 596202**)
Units dB?V, dBmV, dBm
Network tools ?
Pre-amplifiers powering
Pre-amplifiers powering 5, 13, 18, 24 Vdc and other
(any value between 5 and 24V)
Max. supplied power 12W
Max. supplied current 900 mA
LNB tone 22 KHz
DiSEqC ?
SCR (EN50494) | dCSS (EN50607) ?
*Notes
LDPCBER is the BER measurement before LDPC correction.
BCHBER is the BER measurement after LDPC corrector and before BCH correction.
**Refs. 596202/03/04/05 included in Advance model
?
?
