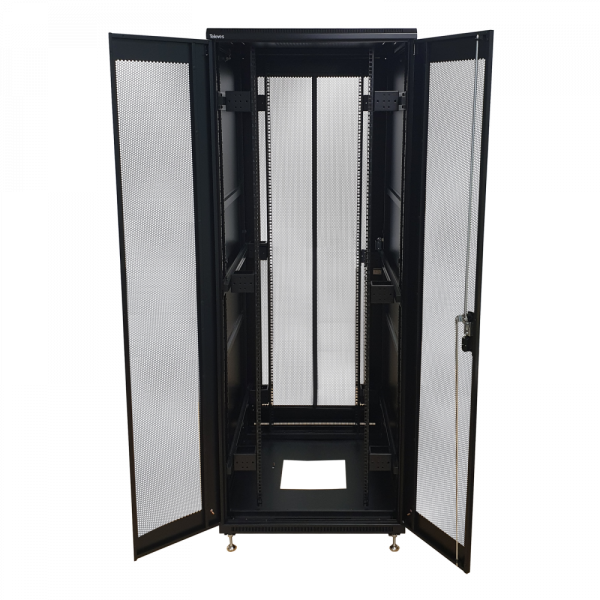

Floor Rack 19” 42U 800×1000 Televes Perforated Doors
19″ Rack Cabinet 42U height 800×1000
The 42U rack is used to house passive or active equipment, allowing it to be visible and protected under a secure structure (steel) in addition to the perforated doors which provides a noticeable improvement in ventilation under lock and key.
Compatible with fibre optic, data cable or coaxial cable installations , it allows the different technologies to be grouped together in the same cabinet.
It is ideal for headend installations such as switches, routers and a good wiring structure, where the infrastructure requires greater depth.
Designed for floor installation. Supplied assembled.
Dimensions (W x H x D): 800mm x 2010mm x 1000mm
Weight: 152kg
**
Technical Specifications 19″ 42U Rack Cabinet height 800×1000
?
?
Modular size (standard)
in
19
Height
mm
2010
Width
mm
800
Depth
mm
1000
Number of rack units (U)
?
42
Rack material Steel
?
Steel
Colour
?
Black
Surface finish Electrostatic
?
Polvo electrost?tico
Number of doors 2
?
2
Rear door Yes
?
Yes
Rear door material Steel
?
Steel
Max. load capacity
kg
1000
Max. load capacity (with castors)
kg
960
Maximum load capacity (with legs)
kg
600
Removable sides
?
Yes
Installation type
?
Floor
Rail profile type
?
L-shaped
Grounding
?
Yes
