Ont Home with Wifi AC with 4 ports GB Ethernet
Ont Home with Televes Wifi

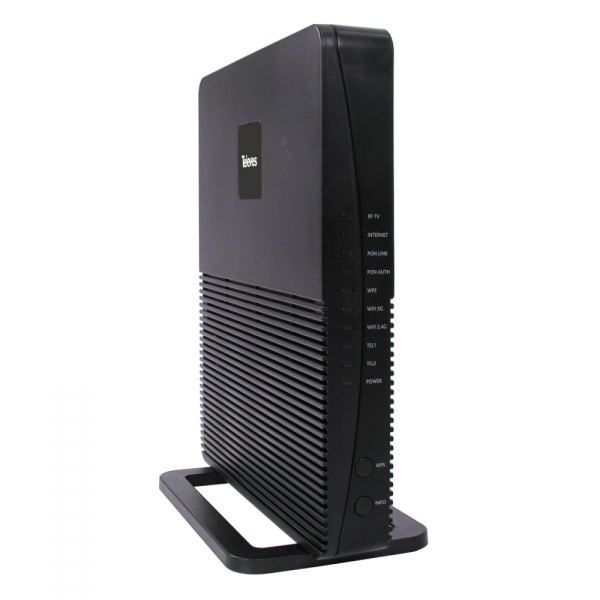

The optical network terminal (Optical Network Unit) 769514 of Televes, is a subscriber equipment (CPE), since it is responsible for delivering the contracted services in the home of the subscriber.
It is of “Home” type so it offers 4 ports GB Ethernet, 2 ports FXS, 1 USB port, WiFi (WLAN 802.11 b / g / n / ac, 2.4 / 5 GHz) and RF Overlay.
The Optical Network Unit (Optical Network Unit) is a subscriber equipment (CPE), since it is responsible for delivering the contracted services in the subscriber’s home.
What technical characteristics does the ONT 769514 have?
Remote configuration without subscriber intervention
Multiple configuration and assembly options
Multiple-play signals such as high-speed Internet, VoIP, WiFi, TV (IPTV and / or RF Overlay) are available on their connectors.
What technical specifications does ONT 769514 have?
Reference 769514
ONT model
HOME
RF-Overlay ?
WiFi (802.11 b / g / n) (2×2) 2.4 ?
WiFi (802.11 b / g / n / ac) (2×2) 2.4 / 5 ?
USB 1
Ports FXS 2
Ports ETH 10/100 / 1000BASE-T 4
PoE –
NAT / NAPT ?
Firewall ?
VPN pass-through ?
PPPoE terminal ?
OMCI ?
TR-069 ?
CLI ?
WebGUI ?
general
Vdc Power 12
Temperature conditions ?C -5 … 65
?F 23 … 149
Relative Humidity% 0 … 95
