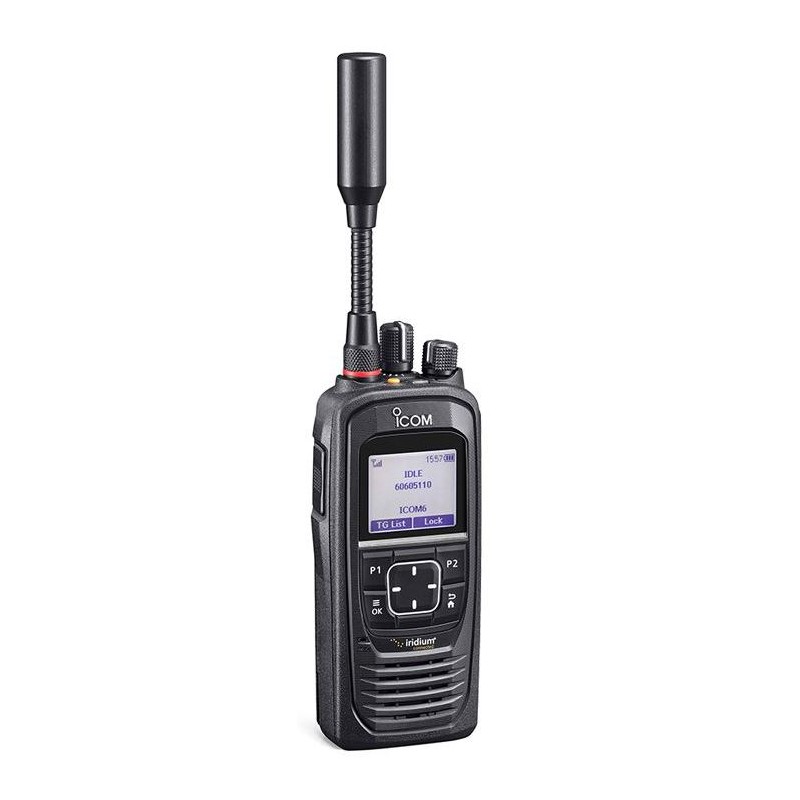

Icom SAT100 – Handheld Push To Talk Handset (ICOM-IC-SAT100-PTT)

The Icom IC-SAT100 enables instant group communication anywhere in the
world at the push of a button. By using the Iridium satellite network, which
provides global coverage including the polar regions, the radio delivers
reliable wide-area communication across the entire planet.

Satellite PTT Communication

The IC-SAT100 operates using Satellite Push-To-Talk (PTT), a two-way radio
system based on the Iridium satellite network. It is designed for use in
remote or isolated locations where mobile phone or landline infrastructure is
unavailable. Even when terrestrial networks are disrupted due to natural or
human-made disasters, Satellite PTT remains operational as a stable and
independent backup solution.

Unlike traditional satellite phones, users can instantly communicate with
all radios within the same talkgroup simply by pressing the PTT button,
enabling fast and efficient group communication.

Talkgroup Capability and Setup

The IC-SAT100 is quick and easy to configure using the Iridium Command
Center and supports up to 15 talkgroups. Talkgroups can be shared across
users, allowing seamless global interoperability even when different Iridium
PTT handsets are used.

Key Features

Rugged and Weather-Resistant Design
The radio features a waterproof, dust-tight, and durable body with IP67
protection, allowing submersion in up to 1 meter of water for 30 minutes. It
also meets MIL-STD-810G standards and operates reliably in temperatures
ranging from -30°C to +60°C (-22°F to 140°F).

Built-In Emergency Button
A dedicated and easy-to-locate emergency key allows users to send emergency
alerts to pre-programmed contacts.

Powerful Audio Output
A 1500 mW internal speaker delivers loud and clear audio, even in noisy
environments.

Long Battery Life
The supplied lithium-ion battery provides up to 14.5 hours of operating
time.

Secure Communications
Supports secure voice communication with AES 256-bit encryption.

Additional Features

• Multi-language display supporting English, Chinese, French, Japanese, and
Spanish
• SMA-type antenna connector for optional external antenna use
• AquaQuake function to remove water from the speaker grill
• USB charging via Micro-B connector

What’s Included

• Icom IC-SAT100 PTT Satellite Radio
• BP-300 battery pack
• MBB-5 belt clip
• FA-S102U antenna
• BC-241 desktop charger
• BC-242 AC adapter

Technical Specifications

Harmonized Tariff Number: 85176200
Product Type: Satellite PTT radio
Use Type: Handheld
Brand: Icom
Model: IC-SAT100
Network: Iridium
Satellite Constellation: 66 satellites
Coverage Area: 100% global
Service Type: Iridium PTT
Features: GPS, SOS, Bluetooth

Dimensions
Height: 135 mm (5.3 inches)
Width: 57.8 mm (2.3 inches)
Depth: 32.8 mm (1.3 inches)

Weight: 360 g (12.7 oz) including BP-300 battery and antenna

Frequency Band: L-band (1–2 GHz)
Ingress Protection Ratings: IP54, IP55, IP67
Accessory Type: Handset
Operating Temperature Range: -30°C to +60°C (-22°F to 140°F)
Supported Languages: English, Chinese, French, Japanese, Spanish
