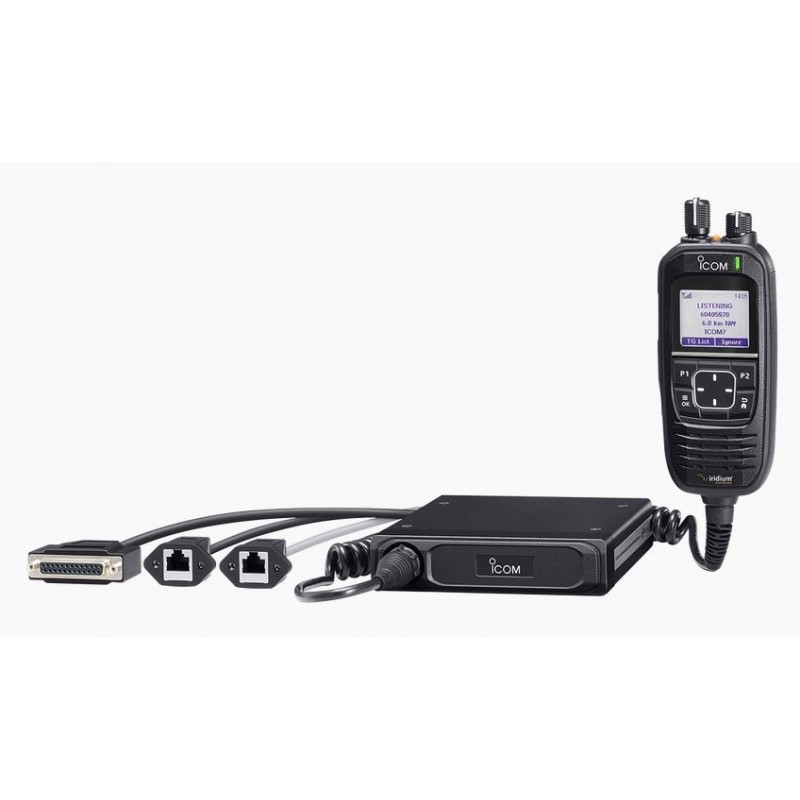

Icom IC-SAT100M – NBT – Fixed In -Vehicle / In – Building PTT Transceiver (IC-SAT100M-NBT)

The Icom IC-SAT100M is a global satellite PTT radio designed for fixed
installations in buildings and vehicles. Unlike handheld satellite radios,
this model does not require the user to remain outdoors with a clear view of
the sky to maintain a stable connection. Its design supports seamless
operation from vehicles to indoor environments, including basements. The
system operates on the Iridium satellite network, providing true worldwide
coverage, including the polar regions.

Satellite Push-To-Talk Explained

The IC-SAT100M is a dedicated satellite push-to-talk radio that enables
real-time, one-touch communication between groups of users located anywhere
in the world. By using the Iridium satellite network, it ensures consistent
global connectivity. Use of the IC-SAT100M requires an active subscription,
and regulations regarding use or possession may vary by country or region.

One-to-Many Communication

Users can instantly communicate with all radios assigned to the same
talkgroup by simply pressing the PTT button, enabling fast and efficient
group coordination.

True Global Coverage

With support from the Iridium satellite network, the IC-SAT100M provides
complete global coverage, including both the North and South Poles.
Subscription services are required, and regional restrictions may apply.

Real-Time, Low-Latency Performance

The system operates using 66 low Earth orbit satellites, delivering
low-latency communication and more reliable coverage compared to traditional
geosynchronous satellite systems.

Interoperability with Other Communication Systems

When combined with a VE-PG4 RoIP gateway, the IC-SAT100M can interconnect
with IP phones, WLAN, LTE networks, IDAS digital systems, analog radios, and
other communication platforms, including Type-D multi-site trunking and
conventional systems.

Installation and Hardware Features

The antenna unit with integrated RF module is installed on the rooftop,
allowing the radio to be used from vehicles, indoors, or underground
locations. The antenna unit and main unit are connected using a LAN cable,
ensuring simple and reliable wiring. The system supports both 13.2 V and 26.4
V DC vehicle power sources.

Durability and Audio Performance

The antenna unit with RF module is rated IP67, the main unit is IP54, and
the microphone is IP55, offering protection in demanding environments. A
powerful 1500 mW audio output ensures clear communication.

Additional Features

• Voice recording capability
• Multi-language display supporting English, Chinese, French, Japanese, and
Spanish
• Integrated GPS receiver for displaying received signal location
• Short data messaging
• AES 256-bit encryption for secure communications
• Tested in accordance with MIL-STD-810 environmental standards

Package Contents

• Main unit
• Antenna unit with RF module
• Multi-function speaker microphone
• OPC-2435 DC power cable
• OPC-2102 LAN cable (20 m / 65.6 ft)
• Mobile mounting bracket for the main unit
• Antenna angle and mounting kits

Technical Specifications

Frequency Range: 1616 to 1626.5 MHz

Dimensions (W × H × D, excluding projections)
Antenna unit: 76.8 × 200 × 76.8 mm (3 × 7.9 × 3 inches)
Main unit: 125 × 29 × 156.5 mm (4.9 × 1.1 × 6.2 inches)
Microphone: 59.5 × 134.6 × 30.1 mm (2.3 × 5.3 × 1.2 inches)

Approximate Weight
Antenna unit: 500 g (1.1 lb)
Main unit and microphone: 1200 g (2.6 lb)

Operating Temperature Range: -30°C to +60°C (-22°F to 140°F)

Audio Output Power
Internal speaker: 1500 mW typical (8-ohm load)
External speaker: 4 W typical (4-ohm load)

Power Supply Voltage: 13.2 V / 26.4 V DC (10.5–32 V DC range)

Maximum Talkgroups: 15

Antenna Connector: SMA for external antenna
