Individual Ceiling Fan for 19” Rack, 195m3/h by Televes
Single Ceiling Fan for 19” Rack, 195m3/h by Televes

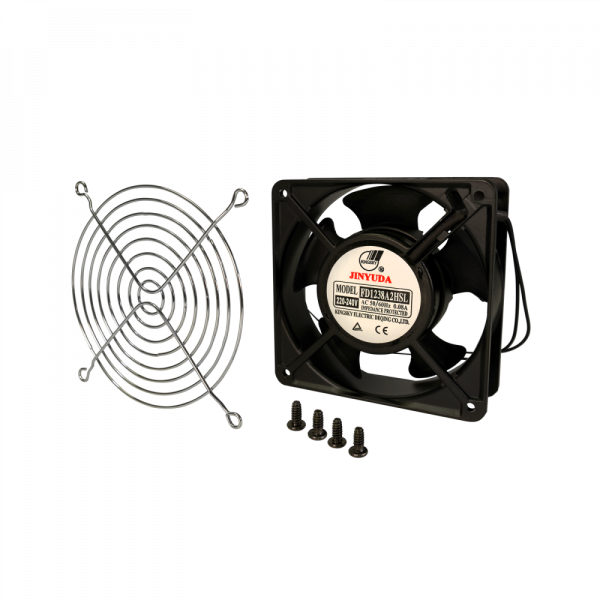

This fan is suitable for 19″ cabinets, for installation on the top of the cabinet and cooling the structure, creating an air current inside the cabinet that will dissipate the heat of the components installed inside.
The fan has a low noise level of less than 48dB and a moderate and powerful airflow of 195m3/hour. It comes with the necessary screws for anchoring to the ceiling of the cabinet. It also includes a protection grille.
It can be used as a single fan or to replace inside a multi-fan tray. It is made of zinc alloy. Dimensions: 120x120x38mm.
Technical Specifications of Televes 19” Single Rack Ceiling Fan, 195m3/h
?
Number of fans ? 1
Max. voltage Vac 240
Input voltage Vac 220 … 230
Network frequency ? 50 Hz / 60 Hz
Max. current 1 fan A 0,08
Max. power consumption W ?
Type of installation ? Roof
Protective casing ? Yes
Air flow rate m?/h 195
Noise emission dBA ?
? ? ?
? ? ?
? ? ?
? ? ?
? ? ?
? ? ?
? ? ?
? ? ?
? ? ?
? ?
