Receptor ?ptico Overligth SC/APC 2 Salidas TDT+FI1/TDT+FI2 Televes

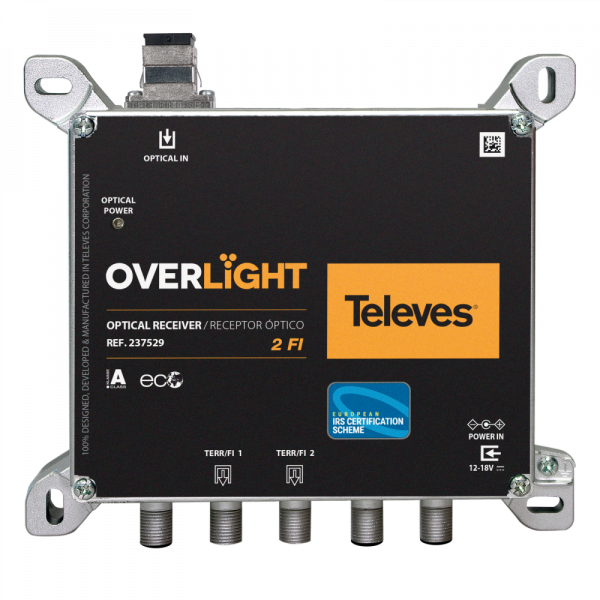

Receptor **ptico Overlight 2 Salidas SC/APC de Televes
Los receptores Overlight de Televes se caracterizan por ser una serie de distribuci**n de Sat**lite y Terrestre sobre fibra **ptica para ser usados en instalaciones ICTs, permitiendo convertir la se**al de fibra en TDT y 2 FI. Se usa en promociones de nueva construcci**n, ya que**tanto la se**al de TDT como 2 bandas de sat**lite deben de llegar al interior de la vivienda de manera obligatoria seg**n la ley de ICT. Por lo que conseguir**s agrupar todos los servicios en una sola fibra **ptica, consiguiendo instalaciones con menos antenas y dispositivos en la instalaci**n, haciendo el trabajo del instalador mucho m**s sencillo.
Con un **nico transmisor podemos dar servicio directamente hasta 64 viviendas, usando la fibra **ptica desde el RITS o RITU hasta el RTR de la vivienda. Tambi**n podemos usar este equipo para enviar la se**al por fibra **ptica a 64 edificios, realizando la conversi**n **ptica el**ctrica con el receptor **ptico Overlight en la base de cada edificio y con la ayuda de un amplificador secundario, distribuir la se**al por cable coaxial como se hace de forma tradicional.**
El uso de este sistema permite un ahorro considerable cuando hay varios edificios separados por grandes distancias. Con una **nica cabecera, podemos convertir la se**al de salida de la cabecera en fibra **ptica y llegar hasta los edificios situados incluso a varios kil**metros.
El receptor es capaz de captar por su entrada de fibra las se**ales **pticas de TV combinadas (a longitudes de onda de 1200 a 1600nm) para procesar y recuperar m**s tarde, las se**ales de TV terrestre y sat**lites originales, separando las se**ales en 2 salidas coaxiales: TDT+FI1 y TDT+FI2.
Su chasis est** hecho en zamak y se puede instalar en pared atornillado. Incluye fuente de alimentaci**n. Es muy compacto y ligero con fabricaci**n 100% europea.
Technical Specifications of the Televes Overlight Optical Receiver with 2 SC/APC Outputs
Number of TERR outputs ? 2
Number of DTT+FI outputs ? 2
Impedance ? 75
Inputs/Bands ?
TERR FI
Output frequency range MHz
87 … 698 950 … 2200
Output level dB?V
79 … 83 71 … 75
Wavelength nm 1200 … 1600
Optical device ? InGaAs pin photodiode
Optical input level dBm -15 … -1
RF Connectors ? “F” female
Optical connectors ? SC/APC
Supply voltage Vdc 12 … 18
Max current consumption (@12V) mA 195
Max current (@18V) mA 130
Operating temperature ?C -5 … 45
Source input voltage Vac 100 … 240
Max input current of the source mA 600
Source output voltage Vdc 12
Max output current of the source ? ?
Source protection index ? 23
Source operating temperature ?C -5 … 45
