Indoor Amplifier UHF/VHF 2S+TV “CEI” 20dB LTE 5G

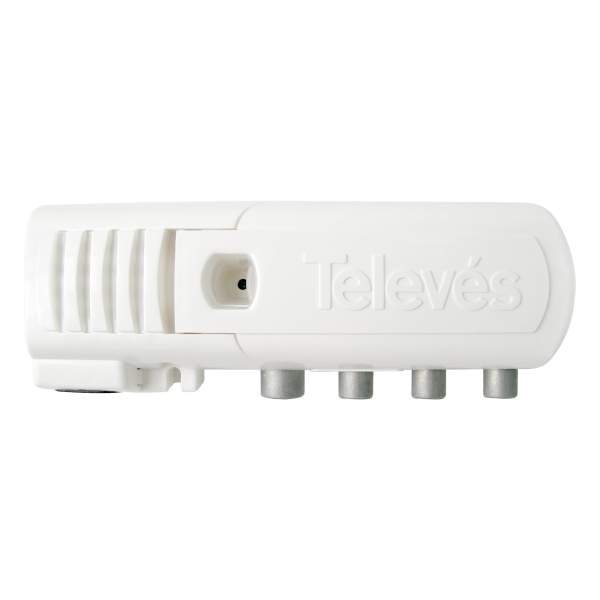

Indoor Amplifier UHF/VHF 2S+TV “CEI” 20dB LTE 5G Televes 545720
Indoor home amplifier for UHF/VHF with 3 outputs “CEI” (2 + 1TV) with switchable DC current pass (12Vdc / 100mA). Equipment adapted to the 2nd Digital Dividend with integrated 5G LTE filter (694 MHz).
This home amplifier offers 20dB of gain and supports an output level of 110dB**V. It includes a TV output with reduced gain (12dB) to connect directly to the television, without installing an outlet.
Discrete and compact design amplifier, with integrated low consumption power supply (40% less than other amplifiers).
Indoor DTT amplifier with 3 outputs (2+TV) with 20dB gain, 5G LTE and DC current pass-through
What are the main characteristics of the Televes 545720 Indoor Amplifier?
Low-impact visual design and limited size
Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
Fully automated manufacturing subject to the most stringent quality controls
Manual gain control, protected by a folding cover
ON/OFF DC pass switch, for pre-amplifier or BOSS system powering
Can be wall-mounted using screws
?IEC? connectors
What technical specifications does the Televes 545720 Indoor Amplifier have?
Inputs 3(2+1TV)
(CEI)
Frequency range MHz 47…694
Gain G dB 20
(12 @ TV)
Gain adjustment range marg 0 …15
Max. output level DIN 45004B Vout dB?V >110
IMD3 (2tones, -35dB) Vout >117
Noise level N.F. dB 6
Power supply/Max.
current inputs ON Vdc/
mA 12 / 100
OFF 0
Mains voltage/frequency V~/Hz 196…253/ 50…60
AC power consumption W/mA <3,6 / <34
Protection index IP 20
Operating temperature range ?C -5 ... +45
