PAU Distributor 6 Outputs Connector F 12dB from Televes

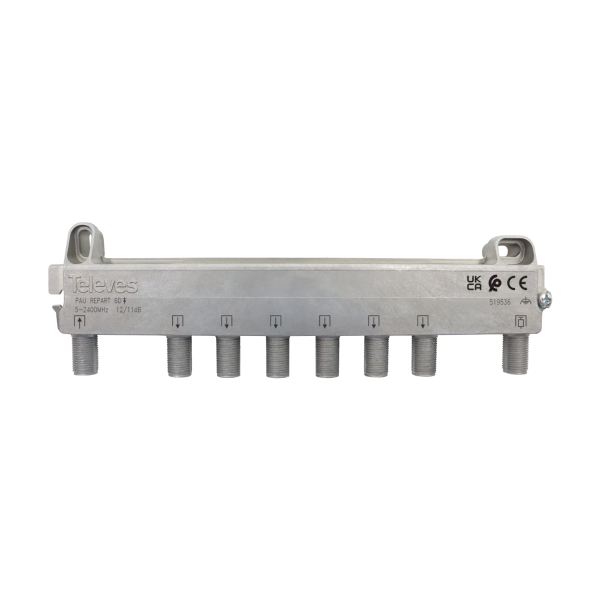

Televes PAU 6-Outlet PAU Distributor 519536
This indoor splitter has 6**outputs with F connectors, suitable for SMATV signals.**It has a good shielding and improves pass-through losses..
As it comes with the PAU, it offers an additional 75 Omhs charged input for the connection of the second downstream. This user access point for distribution is used in collective ICT-2 installations.
It includes grounding screw and**DC pass from the output to the input. It can also be installed outdoors, as long as we put it inside a box (TEL4177).
The splitter has an attenuation**12dB in terrestrial and 11dB in SAT.**It can be installed on wall, rack or assembled on DIN rail. Its armored casing is made of zamak**provides a**great shielding.
Technical Specifications of the Televes PAU 6 Outputs 519536 PAU Distributor
Frecuency Range MHz 5 … 2400
Number of outputs ? 6
Inputs/Bands ?
TERR SAT
Passage losses dB
12 11
Rejection between departures dB
> 20 > 20
Conectors ? “F” female
Max Voltaje V 24
Max Current? mA 350
DC step ? out?In
