Indoor Overlight Optical Transmitter CWDM SC/APC 1310nm/10dB Televes

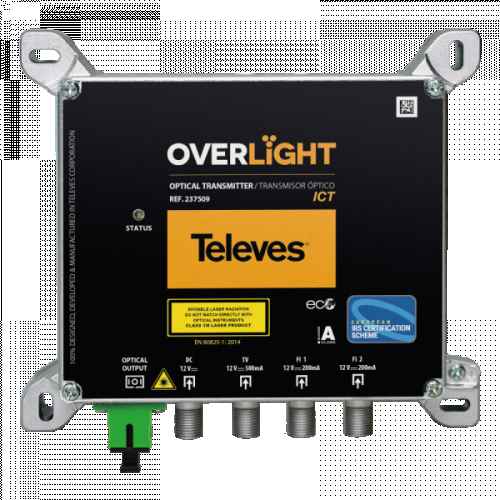

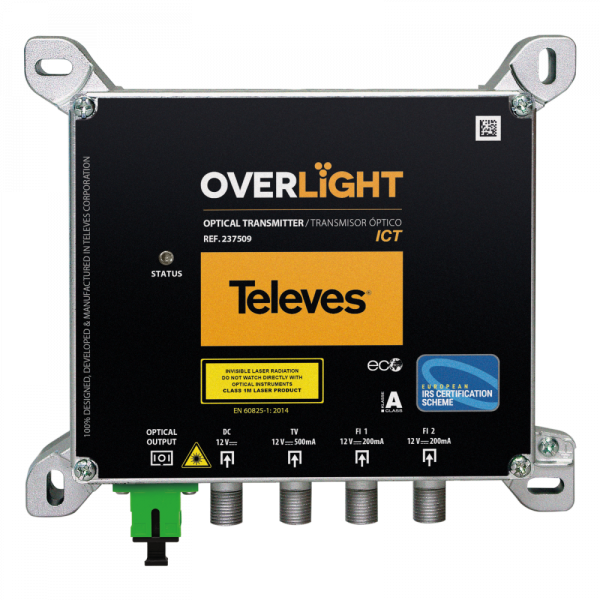

Overlight Optical Transmitter for Indoor CWDM SC/APC 1310nm/10dB from Televes
The Overlight series is characterized by being a satellite and terrestrial distribution series over fiber optics. So you will be able to group all the services into a single optical fiber, achieving installations with fewer antennas and devices in the installation, making the installer’s work much easier.
The transmitter will receive the LNB signal, both satellite and terrestrial, and send it through a single fiber with SC/APC connector, being able to distribute it to up to 64 users.
Its optimized electronic design gives this transmitter an optical power output of 10dbmW at a wavelength of 1310nm. Its chassis is made of zamak and can be installed on either a wall or a mast.
It allows amplification and is capable of preserving signal quality from start to finish, thanks to its low losses and optimized electronic behavior.
Includes power supply and adapter cable for F connector input.
Technical Specifications of the Televes CWDM SC/APC 1310nm/10dB Indoor Overlight Optical Transmitter
Inputs/Bands ?
TERR FI 1 FI 2
Frequency range MHz
47 … 698 950 … 2200 950 … 2200
Entry level dB?V
83 … 95 70 … 85 70 … 85
Number of MUX for Entry Level ?
24 30 30
MUX Bandwidth for Entry Level MHz
8 40 40
Input supply voltage Vdc
11,7 … 17,7 11,7 … 17,7 11,7 … 17,7
Max current step mA
500 500 500
Max current step total tickets mA 1000
Impedance ? 75
Laser ? MQW-DFB uncooled
Wavelength nm 1310
Optical output power dBm 10
RF Connectors ? “F” hembra
Optical connectors ? SC/APC
Supply voltage Vdc 12 … 18
Max power consumption W 4,2
current consumption mA < 350
Operating temperature ?C -5 ... 45
Source input voltage Vac 100 ... 240
Max input current of the source mA 600
Source output voltage Vdc 12
Max output current of the source A 1,5
