Internal LTE filter with cut in channel 59 and IEC connector

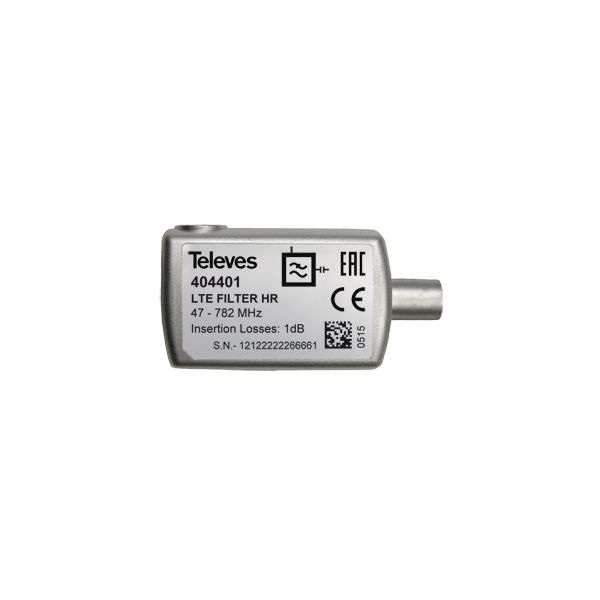

LTE IEC connector filter with cut on channel 59 404401 Televes
Televes LTE 404401 filter has a CEI connector and allows to reject all signals arriving at our installation that exceed the 782 Mhz, in order to avoid interference with the new technology for 4G telephony.
This filter has a CEI connector, which makes its connection to the wiring easier.
The filter 404401 allows the rejection of the band from channel 59 thanks to the 26 dB of impedance.
The LTE 404401 filter eliminates interference from our installation caused by 4G technology.
What technical characteristics does the 404401 filter have?
Referencia ? ?404401
?Conector CEI
?Banda de paso ?MHz ?470-782
?Atenuaci?n banda de paso dB 1
?Banda rechazada MHz 791-862
?Atenuaci?n banda rechazada dB >26
?DC pass —
?Peso g 80
?Dimensiones (Anc x Al x Pr) mm 64 x 34 x 22,5
?Temperatura de trabajo ?C -5 … +45
??ndice de protecci?n IP 20
