LTE filter 5G for Devices with F connector

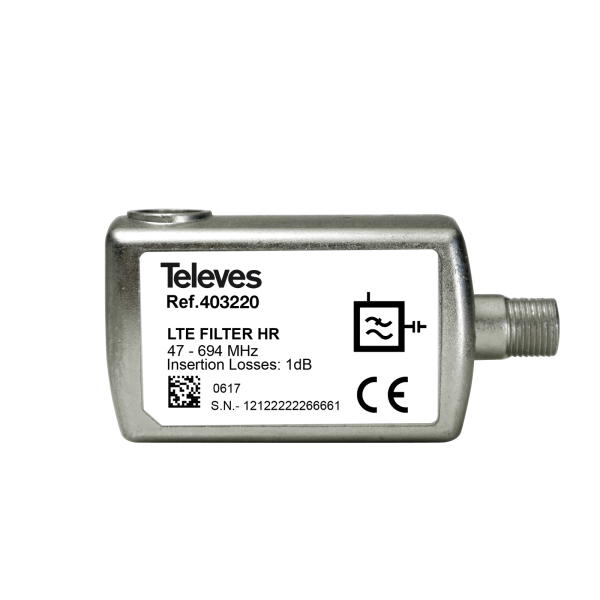

5G filter angled Televes 403220 with F connector
LTE 5G layered indoor filter to adapt your DTT equipment (TV/receiver) to the 2nd Digital Dividend and eliminate all interference caused by 5G signals.
This low pass filter attenuates up to 25dB all signals from channel 48 (694Mhz) so you can enjoy terrestrial television without interruption.
Its small size and angled shape with integrated F connector is designed to connect directly to the entrance of the equipment to be protected.
This filter has no DC current path.
LTE 5G indoor layered Televes filter with F connector, low pitch attenuation and 25dB selectivity.
What are the main features of the Televes LTE 5G 403220 Filter?
It incorporates a “F” connector that allows direct connection to the signal input of the equipment to be protected.
Plug-in format with integrated connector that adapt to any device
Low step losses, so as not to affect distributed signals
Indoor installation
Compact and lightweight size.
It has no DC current pass
What technical specifications does the Televes 5G 403220 LTE Filter have?
Frequency margin MHz 47 – 694 733 – 862
Attenuation dB < 1 > 25
Inputs/Outputs n? 1 / 1
Max current through inputs mA —
Temperature operat. limits ?C -5 … +45
Protection Level IP 20
