IR over coax Receiver (2nd port)
IR over coax Receiver (2nd port)

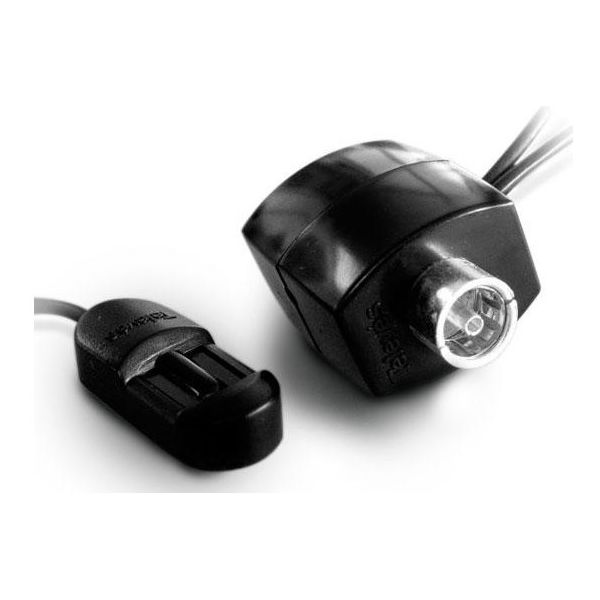

**The Televes second-socket IR-over-coax receiver**allows the**transmission of infrared signals**from remote controls over the**coaxial cable network**, so that we can change any**receiver, television, etc. from a different room**. (Only for**second socket**).
It is a**universal system**for**remote control of equipment**such as**satellite receivers, DTT, DVD, and video VCR**.
Technical characteristics ? RX TX
GO
Output frequency KHz 36 (RC5) —
RF
Min. entry level dB?V 50 —
Modulation frequency MHz — 14.7
Output level dB?V — 100
Harmonic level dBc — -45
Insertion losses dB 0.5 @ 5 ? 862
MHz
General
Feeding Vdc 12
Max consumption mA 12
Coaxial output power supply mA 30 —
Physical Data
Net weight:?400?g
Gross weight:?400?g
Width:?53?mm
Height:?31?mm
Depth:?25?mm
Main?product weight:?68g
