Description

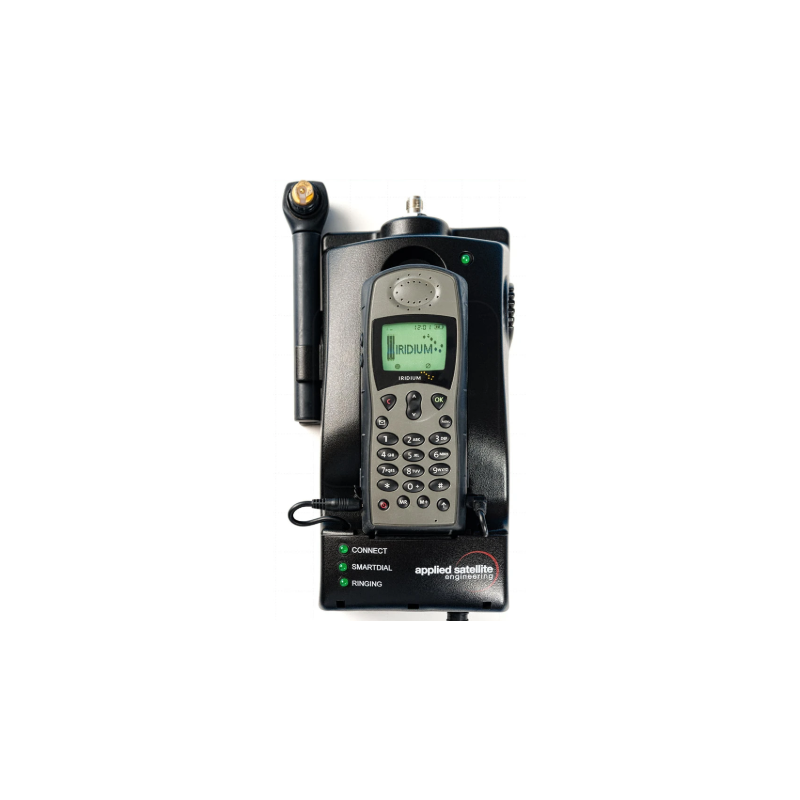

Iridium 9505A Satellite Phone Docking Station – Model MC03

Introducing the Iridium 9505A Satellite Phone Docking Station – Model MC03
by Applied Satellite Engineering, your ultimate solution for seamless
satellite communication both indoors and outdoors. Effortlessly dock your
Iridium 9505A satellite phone to enjoy connectivity with standard analog
phones or integrate it into your company’s PBX system. Whether on a boat, in
the office, or on the move, stay connected with ease!

Key Features:
“Smart Dialing”: Automatically formats the dialed number for the
destination country, eliminating the need for the “00”
international dialing sequence.
Simple Operation: Features clear LED status lights and utilizes the Iridium
handset’s graphical display for straightforward setup, troubleshooting, and
operation.
Base Station Ringer: Provides an audible alert for incoming calls.
Versatile Power Input: Supports a 10 – 32 VDC input range for compatibility
with most vehicle and marine power systems. Comes with a universal power
adapter for 100/240 VAC, 47/63 Hz, and a DC vehicle adapter.
Technical Specifications & Features:
RJ11 Connect: Connects to analog phones, including PBX systems and
multi-handset wireless phones. Use with cordless phones can expand coverage
up to eight units within a two-mile unobstructed range from the base
station.
Hands-free Connect: Headset/microphone jack with audio enhancement
circuitry for superior voice quality.
Data Port Connect: RS232 port available for data connections and compatible
with Iridium’s Direct Internet 2.0.
Certifications: Iridium certified, with additional approvals including CE
and IEC60945.
Product Dimensions and Additional Information:
Interfaces: POTS (RJ11), RS232, 2.5 mm hands-free
Dimensions: Length: 9.75 in., Width: 5.25 in., Height: 3.5 in.
Weight: 1.4 lb
Operating Temperature Range: –15°C to +70°C
Power Options: 10 – 32 VDC, or use the included power adapter for 100/240
VAC, 47/63 Hz
Approvals: Iridium, CE, IEC60945 (indoors)
