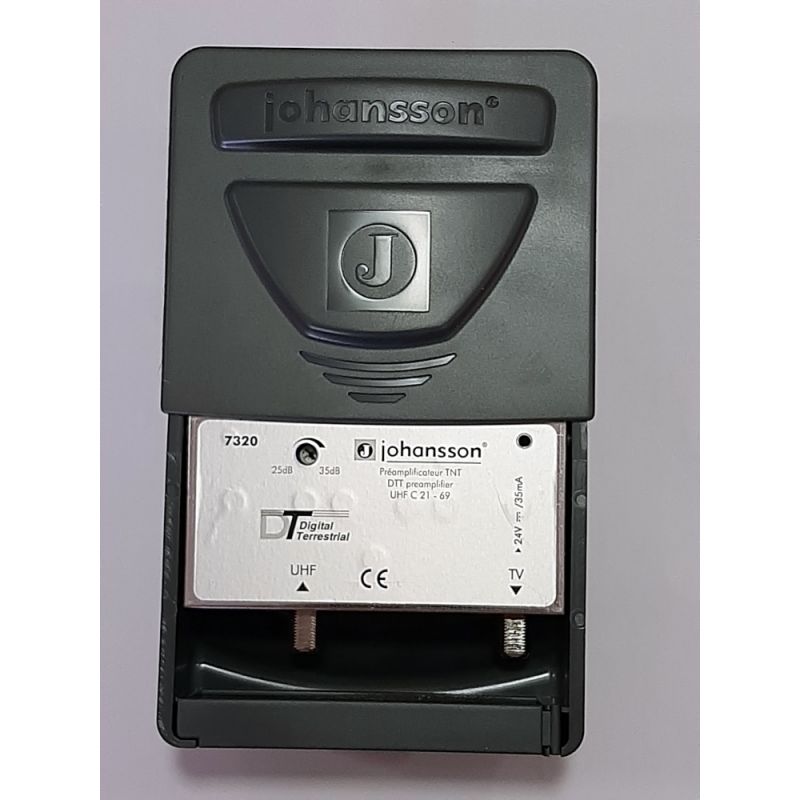

Johansson 7320 Preamplifier UHF C21-69 (470-862 MHz)
KSh2,988.00
Frequency range: UHF C21-69 (470-862MHz)
Gain: 25-35dB
Noise Factor: 2.0dB
Maximum input level: 80 dBuV
Maximum output level 35 dB/M3: 105 dBuV
Power: 24 Volts
Consumption: 35mA
Dimensions: 112x98x56mm
Mounting: Pole or wall
Related products
-
Add to cartBand: BI / III-DAB / FM / UHF1 / UHF2. Frequency range (MHz): 47-68 / 175-254 / 88-108 / 470-862. Gain: 25 – 38. Regulation (dB): 15/20/15 / 15. Noise figure (dB): 4/4 / 7.5 / 7.5.
-
Add to cartHigh corrosion resistance steel mast, thanks to its dual galvanized treatment and reactive sealing (RPR). Its grooved design allows it to be assembled and fixed with other poles to extend its length. RPR mast 2m long, diameter ?40mm and thickness 1.25mm. Televes 3041
-
![Amplifier Mast NanoKom 3e/1s EasyF BIII/UHF[dc]/FMmix...](https://adishnetservices.com/wp-content/uploads/2025/04/amplifier-mast-nanokom-3e1s-easyf-biiiuhf-dc-fmmix-1224v-lte700-televes-320x320.jpg)

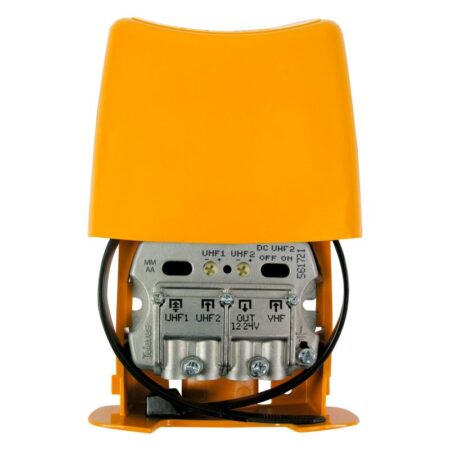

Add to cartMasthead amplifier for the amplification and combination of terrestrial television signals coming from several antennas. LTE700.?Equipped with 3 inputs: the signals on the BIII and UHF inputs are amplified, whereas the FM signal is only combined.?Televes 561821
-
Add to cartUHF preamplifier
7412DC
Features
1 x VHF input (BIII/DAB) / 2 UHF inputs
broadband output
Selectable DC current step
Output level up to 112 dB?V
Adjustable gain on VHF 5-23 dB
Adjustable gain on UHF 10-32 dB
LTE (5G) rejection
Very low noise figure
Power LEDs
Operating voltage 12-24 VDC
Wall or mast mount
Specifications -
Reviews
There are no reviews yet.
