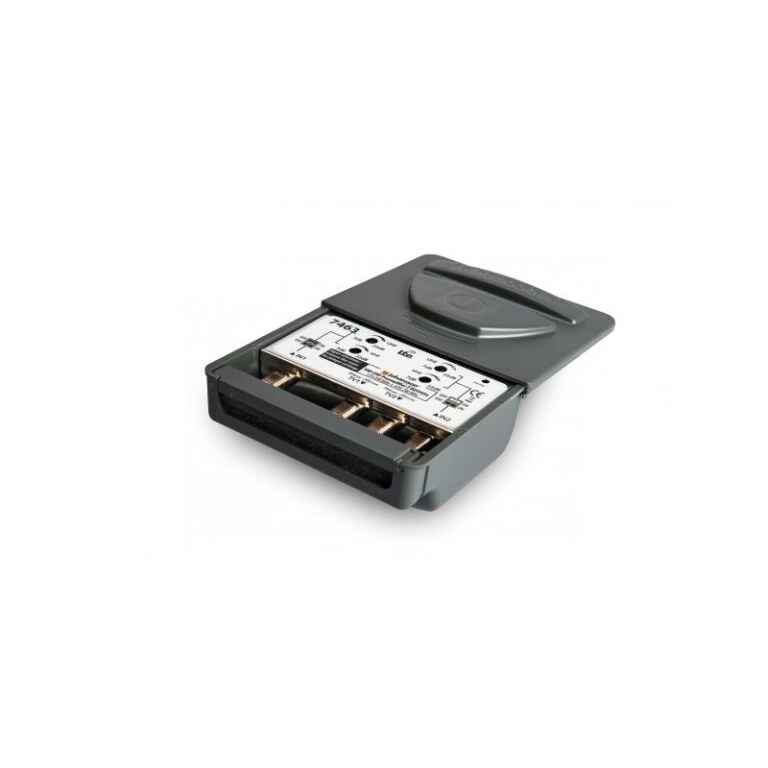

Johansson 7463 LTE amplifier 2 inputs 2 outputs
KSh2,360.00
Frequency range 174-240 / 470-790 / 174-240 + 470-790 MHz
Gain VHF: 7-22 UHF: 7-22dB
Noise figure 3.5 dB
max. input level 80 dB?V
max. output level 105 dB?V
Power supply 5-24 VDC
Consumption 35mA @ 24VDC / 90mA @ 5VDC
Dimensions 112 x 98 x 56 mm2 universal input: VHF only / UHF only or VHF+UHF (switchable with jumpers)
2 broadband outlets
output up to 105dB?V
adjustable gain 7-22dB on VHF
adjustable gain 7-22dB on UHF
LTE (4G) + GSM rejection
low noise
LED power indicator
DC current pass (with jumper)
power supply 5-24 VDC
