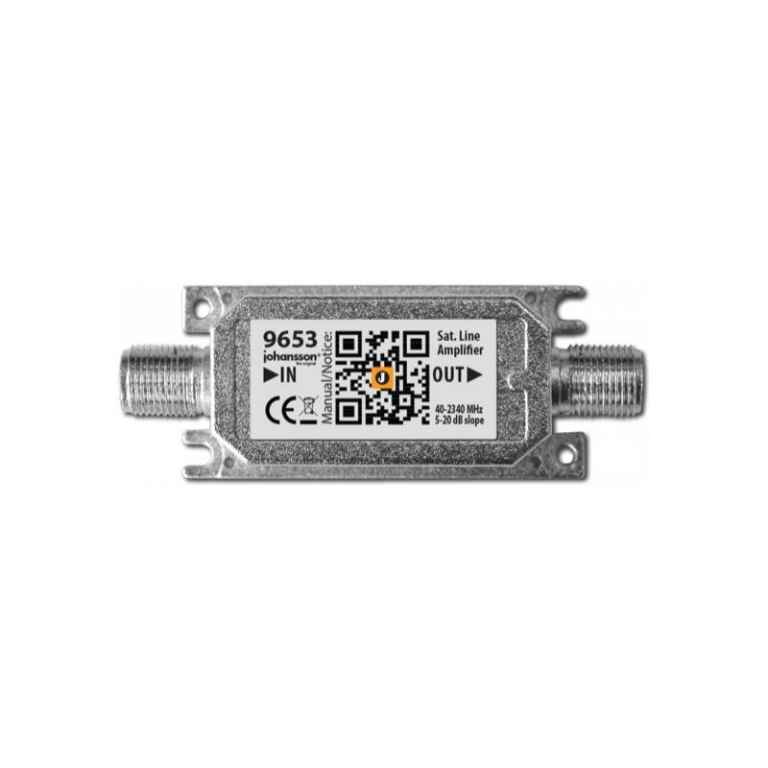

Johansson 9653E Sat Line Amplifier 20dB
KSh2,516.00
Line Amplifier: 40-2400 MHz / Gain Slope: 5-20 dB. Sloped gain to compensate for coaxial cable losses.
Gain dB
5@40MHz
6 @ 290MHz
10 @ 950MHz
20 @ 2150MHz
20@2340MHz
Noise figuredB 7
Max. Output level dB**V 110
Power supply V 13-18 / 60mA
DC power pass mA 500 max.
Dimensions mm 68 x 26 x 16
