Load 75 Ohm for Connection F with Condenser.
Load 75 Ohm with capacitor

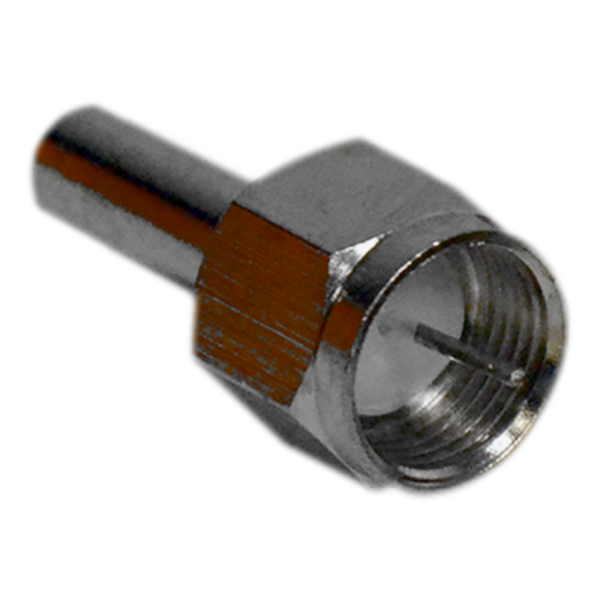

The Televes 4061 load is a terminal load with type “F” connection, 75 Ohm.
This load is installed in the unused outputs of the devices, to terminate a coaxial transmission line and prevent mismatches and interference.
It has direct current blocking, so it is recommended for equipment that has a DC passage to the output.
The load 4061 is a type F load with capacitor.
What technical characteristics does the 4061 load have?
Thread type F load.
75 Ohm.
High quality material.
For unused outputs.
Prevent mismatches and interference.
It has DC blocking.
Recommended for equipment that has a DC passage to the exit.
