Mecer ME-1000-GTU UPS, 1KVA Online Smart UPS

Related products

•

  Mecer ME-10000-GT UPS, 10KVA Online 3 Phase Smart UPS

  KSh460,000.00

  Description
  Mecer ME-10000-GT 10KVA Online 3 Phase Smart UPS

  Mecer ME-10000-GT 10KVA Online 3 Phase Smart UPS buy from the leading mecer UPS dealer in Kenya, buy Mecer ME-10000-GT 10KVA Online 3 Phase Smart UPS.

  Mecer UPS acts as a surge protector to companies most valued assets which are connected to a power grid, 10KVA mecer UPS acts as a stepdown when there is more circuit from the power grid. 10KVA mecer UPS helps you face the competition head-on.

  Competition is becoming so fierce in todays economy that why power disruption may cost business so much, power surges may destroy machinery and other equipment when power keeps going on and off .

  Mtech Networks want you to stay on top of business with Meccer UPS. this 10KVA UPS can help run the equipment for several hours when power goes off and also there is no abrupt power disruption to equipment.

  Mecer 10KVA Online Smart-UPS specifications
  Capacity: 10KVA (10,000VA)
  Technology: Online double conversion
  Input Voltage: 380V/400V/415V (3-phase)
  Input Voltage Range: ±25% (adjustable)
  Output Voltage: 380V/400V/415V (3-phase)
  Output Voltage Regulation: ±1%
  Frequency: 50/60Hz (auto-sensing)
  Output Power Factor: 0.9
  Crest Factor: 3:1
  Efficiency: ≥ 90%
  Transfer Time: 0ms (online mode)
  Battery Type: Sealed lead-acid
  Battery Quantity: External battery packs supported
  Battery Voltage: 240V DC
  Recharge Time: < 7 hours to 90% capacity Communication Interface: RS-232, USB, SNMP (optional) Display: LCD display panel Audible Alarms: Battery mode, low battery, overload, fault Protection: Overload, short circuit, over-temperature, input/output over-voltage, input/output under-voltage, battery low voltage, surge Operating Temperature: 0°C to 40°C Storage Temperature: -15°C to 45°C Humidity: 0% to 95% (non-condensing) Dimensions: 430mm x 192mm x 355mm Weight: 38kg Certification: CE, ISO9001 Specifications and features Product Code ME-10000-WPTU CAPACITY 10000 VA / 8000 W PHASE Single phase with ground INPUT Input Voltage Range 110-300 VAC (Based on load at 50%); 176-300 VAC (Based on load at 100%) Nominal Voltage 208/220/230/240 VAC Frequency Range 46~54 Hz or 56~64 Hz Power Factor >= 0.99 @ Nominal Voltage (100% load)
  OUTPUT
  Voltage Regulation ± 1%
  Output Voltage 208/220/230/240 VAC
  Frequency Range (Batt. Mode) 50 Hz or 60 Hz ± 0.1 Hz
  Transfer Time : AC Mode to Battery Mode Zero
  Transfer Time : Inverter to Bypass Zero
  Transfer Time : Waveform (Batt. Mode) Pure Sine Wave
  Current Crest Ratio 3::1
  Harmonic Distortion <= 3% THD (Linear Load); <= 5% THD (Non-linear Load) Frequency Range (Synchronized Range) 46~54 Hz or 56~64 Hz EFFICIENCY Battery Mode 0.91 AC Mode 0.93 BATTERY Long-run Model : Battery Type Depending on the capacity of external batteries Long-run Model : Charging Current (max.) 1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries) Long-run Model : Charging Voltage 273 VDC ± 1% (Based on 20pcs bateries) Long-run Model : Numbers 16~20 (Adjustable) Standard Model : Battery Type 12 V / 9 Ah Standard Model : Charging Current (max.) 1A/2A Standard Model : Charging Voltage 218.4 VDC ± 1%, 273 VDC ± 1% Standard Model : Numbers 16, 20 Standard Model : Typical Recharge Time 9 hours recover to 90% capacity INDICATORS LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators ALARM Battery Mode Sounding every 4 seconds Low Battery Sounding every second Overload Sounding twice every second Fault Continuously sounding ENVIRONMENT Operating Humidity 0~95% RH @ 0- 40°C (non-condensing) Noise Level Less than 58dB @ 1 Meter PHYSICAL Standard Model : Dimension, D x W x H (mm) 442 x 190 x 688 Standard Model : Net Weight (kgs) 66, 76 Long-run Model : Dimension, D x W x H (mm) 442 x 190 x 318 Long-run Model : Net Weight (kgs) 16 MANAGEMENT Optional SNMP Power management from SNMP manager and web browser Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC Conclusion The Mecer ME-10000-GT UPS is a 10KVA online 3-phase smart UPS designed to provide reliable power backup and protection for critical equipment. It features online double conversion technology, ensuring continuous power supply with zero transfer time during power outages. With a power factor of 0.9 and voltage regulation of ±1%, it delivers stable and high-quality power to connected devices. This UPS is equipped with a sealed lead-acid battery system, supporting external battery packs for extended runtime. It offers multiple communication interfaces including RS-232, USB, and optional SNMP for convenient monitoring and management.

  Add to cart

  Quick View
•

  Mecer 10KVA Single Phase Online Smart UPS

  KSh240,000.00

  Description
  Mecer 10KVA Single Phase Online Smart UPS

  Mecer 10KVA Single Phase Online Smart UPS from the leading mecer smart UPS authorized dealer in Kenya, buy online Mecer 10KVA Single Phase Online Smart UPS

  Mecer 10KVA Single Phase Online Smart UPS specifications
  Model: Mecer 10KVA Single Phase Online Smart UPS.
  Capacity: 10KVA (10,000VA)
  Technology: Online double-conversion
  Input Voltage: 220/230/240VAC
  Input Frequency: 40-70Hz
  Output Voltage: 220/230/240VAC
  Output Frequency: 50/60Hz ±0.2Hz
  Output Waveform: Pure sine wave
  Efficiency: ≥ 90% (AC mode), ≥ 93% (Battery mode)
  Battery Type: Sealed lead-acid maintenance-free battery
  Battery Voltage: 240VDC
  Transfer Time: Zero transfer time.
  Communication Ports: USB, RS232, SNMP
  LCD Display: Yes, with real-time status information
  Protection: Overload, short circuit, battery low voltage, over-temperature
  Backup Time: Depends on the load and battery capacity
  Operating Temperature: 0°C to 40°C
  Dimensions: Varies depending on the model
  Weight: Varies depending on the model

  Conclusion

  The Mecer 10KVA Single Phase Online Smart UPS is a high-performance uninterruptible power supply designed to provide reliable and efficient power protection for critical equipment. With its online double-conversion technology, it ensures a continuous and clean power supply, safeguarding sensitive devices from power disruptions, voltage fluctuations, and surges.

  The UPS offers a capacity of 10KVA, providing ample power for demanding applications. It features a pure sine wave output waveform, delivering stable and high-quality power to connected devices. The UPS comes with communication ports such as USB, RS232, and SNMP, allowing for easy monitoring and management.



  Add to cart

  Quick View
•

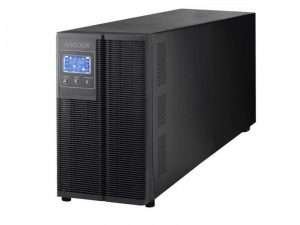

  Mecer 10KVA 3 Phase Online Smart UPS

  KSh450,000.00

  Description
  Mecer 10KVA 3 Phase Online Smart UPS

  Mecer 10KVA 3 Phase Online Smart UPS from the leading mecer UPS dealer in Nairobi Kenya, buy online and have it delivered, 10KVA 3 Phase Online Smart UPS.

  Mecer 10KVA 3 Phase Online UPS is a high frequency unit specifically designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, banks, hospitals etc.

  SKU ME-3000-WPTU
  WEIGHT 27.600
  PHYSICAL DIMENSIONS 421 x 190 x 318 (mm)
  CAPACITY 3000 VA / 2400 W
  VOLTAGE RANGE LOW LINE TRANSFER 160VAC/140VAC/120VAC/110VAC±5% ( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
  VOLTAGE RANGE LOW LINE COMEBACK 168VAC/148VAC/128VAC/118VAC ± 5 % ( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
  VOLTAGE RANGE HIGH LINE TRANSFER 300 VAC ± 5 %
  VOLTAGE RANGE HIGH LINE COMEBACK 290 VAC ± 5 %
  FREQUENCY RANGE 40Hz ~ 70 Hz
  PHASE Single phase with ground
  POWER FACTOR ** 0.99 @ nominal voltage (input voltage)
  OUTPUT VOLTAGE 200/208/220/230/240VAC
  AC VOLTAGE REGULATION (BATT. MODE) ±1% (Batt. Mode)
  FREQUENCY RANGE (SYNCHRONIZED RANGE) 47 ~ 53 Hz or 57 ~ 63 Hz
  FREQUENCY RANGE (BATT. MODE) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
  OVERLOAD Sounding twice every second
  CURRENT CREST RATIO 3:1
  HARMONIC DISTORTION ** 3 % THD (linear load) ** 6 % THD (non-linear load)
  WAVEFORM (BATT. MODE) Pure Sinewave
  AC TO DC Zero
  INVERTER TO BYPASS 4 ms (Typical)
  AC MODE 90%
  BATTERY MODE 88%
  BATTERY TYPE 12 V / 9 AH
  NUMBERS 6
  RECHARGE TIME 4 hours recover to 90% capacity (Typical)
  CHARGING CURRENT 1.0 A (max.)
  CHARGING VOLTAGE 82.1 VDC ± 1%
  BATTERY TYPE & NUMBERS No
  CHARGING CURRENT No
  CHARGING VOLTAGE No
  HUMIDITY 20-90 % RH @ 0- 40°C (non-condensing)
  NOISE LEVEL Less than 50dBA @ 1 Meter
  OPTIONAL USB/RS-232 PORT Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC
  OPTIONAL SNMP Power management from SNMP manager and web browser
  Run-times of ME-3000-WPTU 3kVA
  Model Number of Batteries Encasement 100% Load Backup Time 75% Load Backup Time 50% Load Backup Time 25% Load Backup Time
  ME-3000-WPTU 6 Internal 4.5 Minutes 7 Minutes 13 Minutes 31 Minutes

  • Online-Double conversion • Supports all kinds of load, high overload capability • Fully digitally controlled with 3 DSP’s for IGBT rectifier, inverter and battery charger • Digital Circulating Current Control Technology, Increasing Parallel Reliability • Green Power Technology, High Input Power Factor, Low Current THD, High Efficiency • Intellegent self-diagnosis function, All kinds of fault protection, Large event log capability • Redundant Design of Power Model Fans, Increasing system reliability • High MTBF (Mean Time Between Failures) (>200,000 HOURS), Low MTTR (Mean Time To Repair

  Add to cart

  Quick View
•

  Mecer 20KVA 3 Phase Online Smart UPS

  KSh610,000.00

  Description
  Mecer 20KVA 3 Phase Online Smart UPS

  Mecer 20KVA 3 Phase Online Smart UPS from the leading mecer UPS online dealer in Nairobi Kenya, buy online Mecer 20KVA 3 Phase Online Smart UPS.

  The UPS features multiple communication ports, including RS232, RS485, USB, and SNMP, allowing for easy monitoring and control. The LCD panel provides detailed status information and configuration options for convenient management. The UPS is built with robust construction and offers a 2-year limited warranty, ensuring peace of mind and reliable performance.

  Overall, the Mecer ME-20000-GT UPS delivers exceptional performance, reliability, and flexibility, making it an ideal solution for critical applications that require continuous and uninterrupted power supply.

  MECER 20000VA Smart UPS specifications
  Model: Mecer ME-20000-GT
  UPS Type: Online Smart UPS
  Capacity: 20KVA (20,000 VA)
  Phase: 3 Phase
  Topology: Double Conversion
  Input Voltage: 380/400/415 VAC (3 Phase + N)
  Input Voltage Range: ± 25%
  Frequency: 50/60 Hz (Auto-sensing)
  Output Voltage: 380/400/415 VAC (3 Phase + N)
  Output Voltage Regulation: ± 1%
  Output Frequency: 50/60 Hz (Auto-sensing)
  Overload Capacity: 110% for 60 seconds, 130% for 10 seconds
  Transfer Time: Zero (Online Mode)
  Efficiency: ≥ 92%
  Battery Type: Sealed Lead Acid (Maintenance-free)
  Battery Voltage: ± 384 VDC
  Battery Recharge Time: < 8 hours to 90% capacity Communication Ports: RS232, RS485, USB, SNMP Display: LCD Panel for status and configuration Operating Temperature: 0°C to 40°C Relative Humidity: 0% to 95% (Non-condensing) Audible Noise: < 55 dBA Dimensions (HxWxD): 715 mm x 320 mm x 800 mm Weight: 120 kg Conclusion The Mecer ME-20000-GT is a high-performance 20KVA 3 Phase Online Smart UPS designed to provide reliable power backup and protection for critical equipment. With its double conversion topology, it ensures a clean and stable power supply, protecting connected devices from power fluctuations and disruptions.

  Add to cart

  Quick View
•

  Mecer ME-10000-WPTU UPS, 10KVA Pro Online Tower Smart UPS

  KSh290,000.00

  Description
  Mecer ME-10000-WPTU 1KVA Pro Online Tower Smart-UPS

  Mecer ME-10000-WPTU 1KVA Pro Online Tower Smart UPS from the leading Mecer smart UPS in Nairobi, buy online, ME-10000-WPTU 1KVA Pro Online Tower Smart UPS.

  Mecer ME-10000-WPTU 10000VA / 8000W ON-LINE UPS (with AVR,Monitoring Software + Cable & Built-in Surge Protection) – Black. 12 V / 9 Ah batteries x16. Voltronic Power Winner Pro online pure sine wave UPS.

  ME-10000-WPTU 10000VA Specifications:

  Specifications and features
  Product Code ME-10000-WPTU
  CAPACITY 10000 VA / 8000 W
  PHASE Single phase with ground
  INPUT
  Input Voltage Range 110-300 VAC (Based on load at 50%); 176-300 VAC (Based on load at 100%)
  Nominal Voltage 208/220/230/240 VAC
  Frequency Range 46~54 Hz or 56~64 Hz
  Power Factor >= 0.99 @ Nominal Voltage (100% load)
  OUTPUT
  Voltage Regulation ± 1%
  Output Voltage 208/220/230/240 VAC
  Frequency Range (Batt. Mode) 50 Hz or 60 Hz ± 0.1 Hz
  Transfer Time : AC Mode to Battery Mode Zero
  Transfer Time : Inverter to Bypass Zero
  Transfer Time : Waveform (Batt. Mode) Pure Sine Wave
  Current Crest Ratio 3::1
  Harmonic Distortion <= 3% THD (Linear Load); <= 5% THD (Non-linear Load) Frequency Range (Synchronized Range) 46~54 Hz or 56~64 Hz Mecer ME-10000-WPTU 10000VA EFFICIENCY Battery Mode 0.91 AC Mode 0.93 Mecer ME-10000-WPTU 10000VA BATTERY Long-run Model : Battery Type Depending on the capacity of external batteries Long-run Model : Charging Current (max.) 1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries) Long-run Model : Charging Voltage 273 VDC ± 1% (Based on 20pcs bateries) Long-run Model : Numbers 16~20 (Adjustable) Standard Model : Battery Type 12 V / 9 Ah Standard Model : Charging Current (max.) 1A/2A Standard Model : Charging Voltage 218.4 VDC ± 1%, 273 VDC ± 1% Standard Model : Numbers 16, 20 Standard Model : Typical Recharge Time 9 hours recover to 90% capacity INDICATORS LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators ALARM Battery Mode Sounding every 4 seconds Low Battery Sounding every second Overload Sounding twice every second Fault Continuously sounding ENVIRONMENT Operating Humidity 0~95% RH @ 0- 40°C (non-condensing) Noise Level Less than 58dB @ 1 Meter PHYSICAL Standard Model : Dimension, D x W x H (mm) 442 x 190 x 688 Standard Model : Net Weight (kgs) 66, 76 Long-run Model : Dimension, D x W x H (mm) 442 x 190 x 318 Long-run Model : Net Weight (kgs) 16 MANAGEMENT Optional SNMP Power management from SNMP manager and web browser Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC Conclusion The Mecer ME-10000-WPTU is a 10KVA Pro Online Tower Smart UPS that offers advanced performance and reliable power protection for critical equipment. With its 10KVA capacity, it provides ample power backup to support a wide range of devices during power outages. The UPS operates in online double-conversion mode, ensuring consistent and clean power delivery to your connected equipment. It offers a high input power factor and low input current distortion, making it efficient and suitable for demanding environments.

  Add to cart

  Quick View
