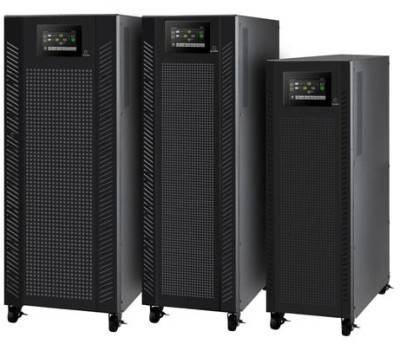

Mecer ME-10000-GT UPS, 10KVA Online 3 Phase Smart UPS

Name: Mecer ME-10000-GT UPS, 10KVA Online 3 Phase Smart UPS | +254720548999
Price: 460000.00 KES
Availability: InStock

KSh460,000.00

Description
Mecer ME-10000-GT 10KVA Online 3 Phase Smart UPS

Mecer ME-10000-GT 10KVA Online 3 Phase Smart UPS buy from the leading mecer UPS dealer in Kenya, buy Mecer ME-10000-GT 10KVA Online 3 Phase Smart UPS.

Mecer UPS acts as a surge protector to companies most valued assets which are connected to a power grid, 10KVA mecer UPS acts as a stepdown when there is more circuit from the power grid. 10KVA mecer UPS helps you face the competition head-on.

Competition is becoming so fierce in todays economy that why power disruption may cost business so much, power surges may destroy machinery and other equipment when power keeps going on and off .

Mtech Networks want you to stay on top of business with Meccer UPS. this 10KVA UPS can help run the equipment for several hours when power goes off and also there is no abrupt power disruption to equipment.

Mecer 10KVA Online Smart-UPS specifications
Capacity: 10KVA (10,000VA)
Technology: Online double conversion
Input Voltage: 380V/400V/415V (3-phase)
Input Voltage Range: ±25% (adjustable)
Output Voltage: 380V/400V/415V (3-phase)
Output Voltage Regulation: ±1%
Frequency: 50/60Hz (auto-sensing)
Output Power Factor: 0.9
Crest Factor: 3:1
Efficiency: ≥ 90%
Transfer Time: 0ms (online mode)
Battery Type: Sealed lead-acid
Battery Quantity: External battery packs supported
Battery Voltage: 240V DC
Recharge Time: < 7 hours to 90% capacity Communication Interface: RS-232, USB, SNMP (optional) Display: LCD display panel Audible Alarms: Battery mode, low battery, overload, fault Protection: Overload, short circuit, over-temperature, input/output over-voltage, input/output under-voltage, battery low voltage, surge Operating Temperature: 0°C to 40°C Storage Temperature: -15°C to 45°C Humidity: 0% to 95% (non-condensing) Dimensions: 430mm x 192mm x 355mm Weight: 38kg Certification: CE, ISO9001 Specifications and features Product Code ME-10000-WPTU CAPACITY 10000 VA / 8000 W PHASE Single phase with ground INPUT Input Voltage Range 110-300 VAC (Based on load at 50%); 176-300 VAC (Based on load at 100%) Nominal Voltage 208/220/230/240 VAC Frequency Range 46~54 Hz or 56~64 Hz Power Factor >= 0.99 @ Nominal Voltage (100% load)
