Mecer ME-2000-WPTU UPS, 2KVA Online Smart UPS

Related products

•

  Mecer 6KVA Online Smart UPS

  KSh280,000.00

  Description
  Mecer 6KVA Online Smart-UPS

  Mecer 6KVA Online Smart-UPS is the way to go if you want uninterrupted production in your organisation, Mecer 6KVA Online UPS enables employees to continues working even when there is power interruptions.

  6KVA Mecer UPS is designed to support multiple gadgets at the time, Office equipment like desktop computers, printers, Routers switches can all be connected to the UPS since it can support a larger current load.

  Mecer 6KVA Smart-UPS acts as a surge protector, mecer UPS acts as a stepdown in case more current is coming from the power grid, 6KVA UPS protects your most treasured assets which are connected to the UPS.

  True double Conversion Wide input voltage range Input power factor correction 0.99 Output Power Factor 0.8 50Hz/60Hz Frequency converter mode Emergency power off function (EPO) Eco mode operation for energy saving (ECO) Generator compatible.

  Charger capacity expansion to 8A for long run models SNMP+USB+RS-232 multile communications Smart battery charger design for optimized battery performance Selectable output voltage: 208-240VAC, 110-127VAC Optional rackmount form factor

  Mecer 6KVA Online Smart UPS Specifications
  Capacity: 6KVA (6000VA)
  Technology: Online double-conversion
  Input Voltage Range: 160V – 280V (AC)
  Output Voltage: 220/230/240V (AC) ±1%
  Output Frequency: 50/60Hz ±0.2%
  Output Waveform: Pure sine wave
  Efficiency: >90% (AC-AC mode), >85% (DC-AC mode)
  Transfer Time: Zero (Online mode), <4ms (ECO mode) Battery Type: Sealed lead-acid maintenance-free Battery Voltage: 192V (DC) Backup Time: Varies depending on load and battery configuration Communication Ports: USB, RS232, SNMP (optional) Protection: Overload, short circuit, overvoltage, undervoltage, overtemperature Display: LCD panel for real-time monitoring and settings Audible Alarm: Yes Operating Temperature: 0°C to 40°C Dimensions: Varies by model Weight: Varies by models Conclusion The Mecer 6KVA Online Smart UPS (ME-6000-WPRU) is a high-capacity UPS designed to provide reliable and uninterrupted power protection for critical electronic equipment. With its online double-conversion technology, it ensures a consistent and clean power supply by continuously converting incoming AC power to DC power and then back to AC power. This UPS offers a capacity of 6KVA (6000VA), making it suitable for large-scale applications.

  Add to cart

  Quick View
•

  Mecer 10KVA 3 Phase Online Smart UPS

  KSh450,000.00

  Description
  Mecer 10KVA 3 Phase Online Smart UPS

  Mecer 10KVA 3 Phase Online Smart UPS from the leading mecer UPS dealer in Nairobi Kenya, buy online and have it delivered, 10KVA 3 Phase Online Smart UPS.

  Mecer 10KVA 3 Phase Online UPS is a high frequency unit specifically designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, banks, hospitals etc.

  SKU ME-3000-WPTU
  WEIGHT 27.600
  PHYSICAL DIMENSIONS 421 x 190 x 318 (mm)
  CAPACITY 3000 VA / 2400 W
  VOLTAGE RANGE LOW LINE TRANSFER 160VAC/140VAC/120VAC/110VAC±5% ( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
  VOLTAGE RANGE LOW LINE COMEBACK 168VAC/148VAC/128VAC/118VAC ± 5 % ( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
  VOLTAGE RANGE HIGH LINE TRANSFER 300 VAC ± 5 %
  VOLTAGE RANGE HIGH LINE COMEBACK 290 VAC ± 5 %
  FREQUENCY RANGE 40Hz ~ 70 Hz
  PHASE Single phase with ground
  POWER FACTOR ** 0.99 @ nominal voltage (input voltage)
  OUTPUT VOLTAGE 200/208/220/230/240VAC
  AC VOLTAGE REGULATION (BATT. MODE) ±1% (Batt. Mode)
  FREQUENCY RANGE (SYNCHRONIZED RANGE) 47 ~ 53 Hz or 57 ~ 63 Hz
  FREQUENCY RANGE (BATT. MODE) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
  OVERLOAD Sounding twice every second
  CURRENT CREST RATIO 3:1
  HARMONIC DISTORTION ** 3 % THD (linear load) ** 6 % THD (non-linear load)
  WAVEFORM (BATT. MODE) Pure Sinewave
  AC TO DC Zero
  INVERTER TO BYPASS 4 ms (Typical)
  AC MODE 90%
  BATTERY MODE 88%
  BATTERY TYPE 12 V / 9 AH
  NUMBERS 6
  RECHARGE TIME 4 hours recover to 90% capacity (Typical)
  CHARGING CURRENT 1.0 A (max.)
  CHARGING VOLTAGE 82.1 VDC ± 1%
  BATTERY TYPE & NUMBERS No
  CHARGING CURRENT No
  CHARGING VOLTAGE No
  HUMIDITY 20-90 % RH @ 0- 40°C (non-condensing)
  NOISE LEVEL Less than 50dBA @ 1 Meter
  OPTIONAL USB/RS-232 PORT Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC
  OPTIONAL SNMP Power management from SNMP manager and web browser
  Run-times of ME-3000-WPTU 3kVA
  Model Number of Batteries Encasement 100% Load Backup Time 75% Load Backup Time 50% Load Backup Time 25% Load Backup Time
  ME-3000-WPTU 6 Internal 4.5 Minutes 7 Minutes 13 Minutes 31 Minutes

  • Online-Double conversion • Supports all kinds of load, high overload capability • Fully digitally controlled with 3 DSP’s for IGBT rectifier, inverter and battery charger • Digital Circulating Current Control Technology, Increasing Parallel Reliability • Green Power Technology, High Input Power Factor, Low Current THD, High Efficiency • Intellegent self-diagnosis function, All kinds of fault protection, Large event log capability • Redundant Design of Power Model Fans, Increasing system reliability • High MTBF (Mean Time Between Failures) (>200,000 HOURS), Low MTTR (Mean Time To Repair

  Add to cart

  Quick View
•

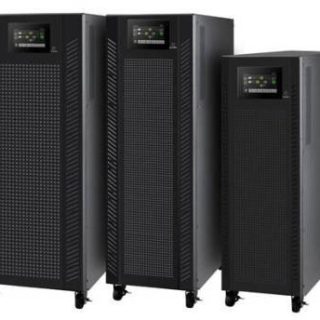

  Mecer ME-10000-GT UPS, 10KVA Online 3 Phase Smart UPS

  KSh460,000.00

  Description
  Mecer ME-10000-GT 10KVA Online 3 Phase Smart UPS

  Mecer ME-10000-GT 10KVA Online 3 Phase Smart UPS buy from the leading mecer UPS dealer in Kenya, buy Mecer ME-10000-GT 10KVA Online 3 Phase Smart UPS.

  Mecer UPS acts as a surge protector to companies most valued assets which are connected to a power grid, 10KVA mecer UPS acts as a stepdown when there is more circuit from the power grid. 10KVA mecer UPS helps you face the competition head-on.

  Competition is becoming so fierce in todays economy that why power disruption may cost business so much, power surges may destroy machinery and other equipment when power keeps going on and off .

  Mtech Networks want you to stay on top of business with Meccer UPS. this 10KVA UPS can help run the equipment for several hours when power goes off and also there is no abrupt power disruption to equipment.

  Mecer 10KVA Online Smart-UPS specifications
  Capacity: 10KVA (10,000VA)
  Technology: Online double conversion
  Input Voltage: 380V/400V/415V (3-phase)
  Input Voltage Range: ±25% (adjustable)
  Output Voltage: 380V/400V/415V (3-phase)
  Output Voltage Regulation: ±1%
  Frequency: 50/60Hz (auto-sensing)
  Output Power Factor: 0.9
  Crest Factor: 3:1
  Efficiency: ≥ 90%
  Transfer Time: 0ms (online mode)
  Battery Type: Sealed lead-acid
  Battery Quantity: External battery packs supported
  Battery Voltage: 240V DC
  Recharge Time: < 7 hours to 90% capacity Communication Interface: RS-232, USB, SNMP (optional) Display: LCD display panel Audible Alarms: Battery mode, low battery, overload, fault Protection: Overload, short circuit, over-temperature, input/output over-voltage, input/output under-voltage, battery low voltage, surge Operating Temperature: 0°C to 40°C Storage Temperature: -15°C to 45°C Humidity: 0% to 95% (non-condensing) Dimensions: 430mm x 192mm x 355mm Weight: 38kg Certification: CE, ISO9001 Specifications and features Product Code ME-10000-WPTU CAPACITY 10000 VA / 8000 W PHASE Single phase with ground INPUT Input Voltage Range 110-300 VAC (Based on load at 50%); 176-300 VAC (Based on load at 100%) Nominal Voltage 208/220/230/240 VAC Frequency Range 46~54 Hz or 56~64 Hz Power Factor >= 0.99 @ Nominal Voltage (100% load)
  OUTPUT
  Voltage Regulation ± 1%
  Output Voltage 208/220/230/240 VAC
  Frequency Range (Batt. Mode) 50 Hz or 60 Hz ± 0.1 Hz
  Transfer Time : AC Mode to Battery Mode Zero
  Transfer Time : Inverter to Bypass Zero
  Transfer Time : Waveform (Batt. Mode) Pure Sine Wave
  Current Crest Ratio 3::1
  Harmonic Distortion <= 3% THD (Linear Load); <= 5% THD (Non-linear Load) Frequency Range (Synchronized Range) 46~54 Hz or 56~64 Hz EFFICIENCY Battery Mode 0.91 AC Mode 0.93 BATTERY Long-run Model : Battery Type Depending on the capacity of external batteries Long-run Model : Charging Current (max.) 1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries) Long-run Model : Charging Voltage 273 VDC ± 1% (Based on 20pcs bateries) Long-run Model : Numbers 16~20 (Adjustable) Standard Model : Battery Type 12 V / 9 Ah Standard Model : Charging Current (max.) 1A/2A Standard Model : Charging Voltage 218.4 VDC ± 1%, 273 VDC ± 1% Standard Model : Numbers 16, 20 Standard Model : Typical Recharge Time 9 hours recover to 90% capacity INDICATORS LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators ALARM Battery Mode Sounding every 4 seconds Low Battery Sounding every second Overload Sounding twice every second Fault Continuously sounding ENVIRONMENT Operating Humidity 0~95% RH @ 0- 40°C (non-condensing) Noise Level Less than 58dB @ 1 Meter PHYSICAL Standard Model : Dimension, D x W x H (mm) 442 x 190 x 688 Standard Model : Net Weight (kgs) 66, 76 Long-run Model : Dimension, D x W x H (mm) 442 x 190 x 318 Long-run Model : Net Weight (kgs) 16 MANAGEMENT Optional SNMP Power management from SNMP manager and web browser Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC Conclusion The Mecer ME-10000-GT UPS is a 10KVA online 3-phase smart UPS designed to provide reliable power backup and protection for critical equipment. It features online double conversion technology, ensuring continuous power supply with zero transfer time during power outages. With a power factor of 0.9 and voltage regulation of ±1%, it delivers stable and high-quality power to connected devices. This UPS is equipped with a sealed lead-acid battery system, supporting external battery packs for extended runtime. It offers multiple communication interfaces including RS-232, USB, and optional SNMP for convenient monitoring and management.

  Add to cart

  Quick View
•

  Mecer ME-3000-WPTU UPS, 3KVA Pro Smart Online Tower UPS

  KSh99,000.00

  Description
  Mecer ME-3000-WPTU 3KVA Pro Smart Online Tower UPS

  Mecer ME-3000-WPTU 3KVA Pro Smart Online Tower UPS ftom the leading mecer smart UPS dealer in Nairobi Kenya, buy online, ME-3000-WPTU 3KVA Pro Smart Online Tower UPS .

  Mecer 3000VA On-Line Tower UPS (ME-3000-WPTU) – Capacity: 3000VA / 2400W, Battery Type: 12 V / 9 Ah, Frequency Range: 40 Hz ~ 70 Hz, Includes AVR, Monitoring Software, Cables & Built-in Surge Protection, Colour: Black.

  SPECIFICATIONS
  Brand Mecer
  Model ME-3000-WPTU
  Capacity 3000 VA / 2400 W
  Voltage Range
  Low Line Transfer 160/140/120/110 VAC ± 5% or 80/70/60/50 VAC ± 5% (based on load percentage 100% – 80% / 80% – 70% / 70% – 60% / 60% – 0%)
  Low Line Comeback 168/148/128/118 VAC ± 5% or 84VAC/74/64/54 VAC ± 5% (based on load percentage 100% – 80% / 80% – 70% / 70% – 60% / 60% – 0%)
  Low Line Comeback (Auto Restart) 168 VAC ± 5% or 84 VAC ± 5% (80% – 100% Load)
  148 VAC ± 5% or 74 VAC ± 5% (0% – 80% Load)
  High Line Transfer 300 VAC ± 5% or 150 VAC ± 5%
  High Line Comeback 290 VAC ± 5% or 145 VAC ± 5%
  Frequency Range 40 – 70Hz (Auto Sensing)
  Phase Single phase with ground
  Power Factor (Nominal Output At Full Load) More than 0.98
  Output
  Output Voltage 208/220/230/240 VAC or 110/115/120/127 VAC
  AC Voltage Regulation (Batt. Mode) ± 1%
  Frequency Range (Synchronized Range) 47 – 53Hz or 57 – 63Hz
  Current Crest Ratio 3:1
  Harmonic Distortion More than 4% THD (Linear Load)
  Less than 7% THD (Non-linear Load)
  Transfer Time
  AC Mode to Batt. Mode Zero
  Inverter to Bypass 4ms (Typical)
  Waveform (Batt. Mode) Pure Sinewave
  Efficiency (Peak)
  AC Mode (At 100% RCD Load) 87%
  Battery Mode (At 100% RCD Load) 85%
  Battery
  Battery Type 12V / 9Ah
  Battery Numbers 6
  Charging Current 1.0 A
  Charging Voltage 82.1 VDC ± 1%
  Indicators
  LCD Panel UPS status, Load level, Battery level, Input/Output voltage, Discharge timer and Fault conditions
  Alarm
  Battery Mode (At 100% RCD Load) Sounding every 4 seconds
  Low Battery Sounding every second
  Overload Sounding twice every second
  Fault Continuosly sounding
  Dimension (DxWxH) 426 x 190 x 318mm
  Net Weight 28.8kg
  Environment
  Noise Level Less than 45dB at 1 Meter
  Management
  Communication USB Card / Optional RS-232 Card, SNMP Card or AS-400 Card available
  Supports Windows 2000 / 2003 / XP / Vista / 2008, Windows 7, Linux, Unix and MAC
  Optional SNMP Power management from SNMP manager and web browser
  Warranty Information

  Conclusion

  The Mecer ME-3000-WPTU UPS is a professional-grade power backup solution designed to provide reliable and efficient power protection for critical equipment. With a power capacity of 3KVA (3000VA), it offers ample power to support servers, networking devices, and other sensitive equipment during power outages or fluctuations.

  This UPS operates in an online double-conversion mode, ensuring a clean and consistent power output by constantly regulating and correcting the incoming power. It provides a pure sine wave output waveform, eliminating any potential compatibility issues and delivering optimal performance for your devices.

  Add to cart

  Quick View
•

  Mecer 2KVA Line Interactive UPS

  KSh28,000.00

  Description
  2KVA Mecer Line Interactive UPS

  Mecer 2KVA Line Interactive UPS  with AVR, Built-in Surge Protection, without Software (Optional USB Port)   1 x12V 7Ah battery will protect your most trusted assets from being damaged by a power surge, short circuit, and unreliable currents.

  Mecer 2KVA UPS buy from Mtech Networks and have it delivered to you. we also sell replacements batteries for mecer UPS that is 12V 7AH UPS replacement battery at affordable prices.

  2KVA Mecer UPS will keep you performing since the UPS gives you ample time to continue working even when there are power interruptions, Mecer 2KVA UPS has a lead time of more than 15 minutes which enables the user to conclude task started When used together with commercial batteries and inverters, Mecer UPS creates a very powerful and essential power backup for any organisations.

  Mecer 2000VA UPS Specifications
  Capacity: 2KVA (2000VA)
  Technology: Line Interactive UPS.
  Input Voltage: 220VAC
  Input Voltage Range: 145VAC – 290VAC
  Output Voltage: 220VAC ± 10%
  Output Frequency: 50Hz/60Hz (Auto Sensing)
  Transfer Time: < 10ms Waveform: Simulated Sine Wave Battery Type: Sealed Lead Acid (Maintenance-free) Battery Backup Time: Depends on load and battery capacity Recharge Time: 4-6 hours to 90% capacity Protection: Overload, Short Circuit, Surge, and Voltage Regulation Communication Ports: USB, RS232, SNMP (Optional). Software: Power Management Software included LCD Display: Provides real-time UPS status information Audible Alarms: Battery Low, Battery Disconnected, Overload, Fault Dimensions: Varies based on model Weight: Varies based on model Conclusions The Mecer ME-2000-VU Line Interactive 2KVA UPS is a reliable and efficient power backup solution for small to medium-sized applications. With a capacity of 2KVA (2000VA), it offers ample power to keep your critical equipment running during power outages or fluctuations. The line interactive UPS technology ensures effective voltage regulation and protection against power surges, spikes, and sags.

  Add to cart

  Quick View
