Mecer ME-6000-WPTU UPS, 6KVA Pro Online Smart Tower UPS

Related products

•

  Mecer 20KVA 3 Phase Online Smart UPS

  KSh610,000.00

  Description
  Mecer 20KVA 3 Phase Online Smart UPS

  Mecer 20KVA 3 Phase Online Smart UPS from the leading mecer UPS online dealer in Nairobi Kenya, buy online Mecer 20KVA 3 Phase Online Smart UPS.

  The UPS features multiple communication ports, including RS232, RS485, USB, and SNMP, allowing for easy monitoring and control. The LCD panel provides detailed status information and configuration options for convenient management. The UPS is built with robust construction and offers a 2-year limited warranty, ensuring peace of mind and reliable performance.

  Overall, the Mecer ME-20000-GT UPS delivers exceptional performance, reliability, and flexibility, making it an ideal solution for critical applications that require continuous and uninterrupted power supply.

  MECER 20000VA Smart UPS specifications
  Model: Mecer ME-20000-GT
  UPS Type: Online Smart UPS
  Capacity: 20KVA (20,000 VA)
  Phase: 3 Phase
  Topology: Double Conversion
  Input Voltage: 380/400/415 VAC (3 Phase + N)
  Input Voltage Range: ± 25%
  Frequency: 50/60 Hz (Auto-sensing)
  Output Voltage: 380/400/415 VAC (3 Phase + N)
  Output Voltage Regulation: ± 1%
  Output Frequency: 50/60 Hz (Auto-sensing)
  Overload Capacity: 110% for 60 seconds, 130% for 10 seconds
  Transfer Time: Zero (Online Mode)
  Efficiency: ≥ 92%
  Battery Type: Sealed Lead Acid (Maintenance-free)
  Battery Voltage: ± 384 VDC
  Battery Recharge Time: < 8 hours to 90% capacity Communication Ports: RS232, RS485, USB, SNMP Display: LCD Panel for status and configuration Operating Temperature: 0°C to 40°C Relative Humidity: 0% to 95% (Non-condensing) Audible Noise: < 55 dBA Dimensions (HxWxD): 715 mm x 320 mm x 800 mm Weight: 120 kg Conclusion The Mecer ME-20000-GT is a high-performance 20KVA 3 Phase Online Smart UPS designed to provide reliable power backup and protection for critical equipment. With its double conversion topology, it ensures a clean and stable power supply, protecting connected devices from power fluctuations and disruptions.

  Add to cart

  Quick View
•

  Mecer 10KVA 3 Phase Online Smart UPS

  KSh450,000.00

  Description
  Mecer 10KVA 3 Phase Online Smart UPS

  Mecer 10KVA 3 Phase Online Smart UPS from the leading mecer UPS dealer in Nairobi Kenya, buy online and have it delivered, 10KVA 3 Phase Online Smart UPS.

  Mecer 10KVA 3 Phase Online UPS is a high frequency unit specifically designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, banks, hospitals etc.

  SKU ME-3000-WPTU
  WEIGHT 27.600
  PHYSICAL DIMENSIONS 421 x 190 x 318 (mm)
  CAPACITY 3000 VA / 2400 W
  VOLTAGE RANGE LOW LINE TRANSFER 160VAC/140VAC/120VAC/110VAC±5% ( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
  VOLTAGE RANGE LOW LINE COMEBACK 168VAC/148VAC/128VAC/118VAC ± 5 % ( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
  VOLTAGE RANGE HIGH LINE TRANSFER 300 VAC ± 5 %
  VOLTAGE RANGE HIGH LINE COMEBACK 290 VAC ± 5 %
  FREQUENCY RANGE 40Hz ~ 70 Hz
  PHASE Single phase with ground
  POWER FACTOR ** 0.99 @ nominal voltage (input voltage)
  OUTPUT VOLTAGE 200/208/220/230/240VAC
  AC VOLTAGE REGULATION (BATT. MODE) ±1% (Batt. Mode)
  FREQUENCY RANGE (SYNCHRONIZED RANGE) 47 ~ 53 Hz or 57 ~ 63 Hz
  FREQUENCY RANGE (BATT. MODE) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
  OVERLOAD Sounding twice every second
  CURRENT CREST RATIO 3:1
  HARMONIC DISTORTION ** 3 % THD (linear load) ** 6 % THD (non-linear load)
  WAVEFORM (BATT. MODE) Pure Sinewave
  AC TO DC Zero
  INVERTER TO BYPASS 4 ms (Typical)
  AC MODE 90%
  BATTERY MODE 88%
  BATTERY TYPE 12 V / 9 AH
  NUMBERS 6
  RECHARGE TIME 4 hours recover to 90% capacity (Typical)
  CHARGING CURRENT 1.0 A (max.)
  CHARGING VOLTAGE 82.1 VDC ± 1%
  BATTERY TYPE & NUMBERS No
  CHARGING CURRENT No
  CHARGING VOLTAGE No
  HUMIDITY 20-90 % RH @ 0- 40°C (non-condensing)
  NOISE LEVEL Less than 50dBA @ 1 Meter
  OPTIONAL USB/RS-232 PORT Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC
  OPTIONAL SNMP Power management from SNMP manager and web browser
  Run-times of ME-3000-WPTU 3kVA
  Model Number of Batteries Encasement 100% Load Backup Time 75% Load Backup Time 50% Load Backup Time 25% Load Backup Time
  ME-3000-WPTU 6 Internal 4.5 Minutes 7 Minutes 13 Minutes 31 Minutes

  • Online-Double conversion • Supports all kinds of load, high overload capability • Fully digitally controlled with 3 DSP’s for IGBT rectifier, inverter and battery charger • Digital Circulating Current Control Technology, Increasing Parallel Reliability • Green Power Technology, High Input Power Factor, Low Current THD, High Efficiency • Intellegent self-diagnosis function, All kinds of fault protection, Large event log capability • Redundant Design of Power Model Fans, Increasing system reliability • High MTBF (Mean Time Between Failures) (>200,000 HOURS), Low MTTR (Mean Time To Repair

  Add to cart

  Quick View
•

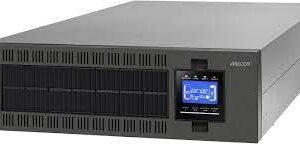

  Mecer ME-6000-WPRU UPS, 6KVA Online Smart UPS

  KSh269,000.00

  Description
  Mecer ME-6000-WPRU 6KVA Online Smart UPS

  Mecer ME-6000-WPRU 6KVA Online Smart-UPS from the leading mecer smart UPS dealer in Nairobi Kenya, buy online ME-6000-WPRU 6KVA Online Smart UPS .

  Mecer 6000VA On-Line Sine Wave 6U Rackmount UPS (ME-6000-WPRU)  Capacity: 6000 VA / 4800 W, Battery Type: 12 V / 9 Ah, Frequency Range: 46~54 Hz or 56~64 Hz, Includes built-in Surge Protection, Black Colour.

  Mecer 6000VA On-Line Sine Wave 6U Rackmount UPS (ME-6000-WPRU) has a wide input voltage range and an available converter mode. Mecer ME-6000-WPRU 6KVA  UPS can charge up to 90% in battery capacity within a 9 hour period. This UPS is generator compatible and the Waveform is Pure Sinewave.

  Mecer ME-6000-WPRU 6KVA Online Smart-UPS specifications
  Phase Single phase with ground
  Capacity 6000 VA / 4800 W
  Input Voltage Range Low Line Transfer 176 VAC ± 3% @ 100% load, 110 VAC ± 3% 50% load
  Low Line Comeback 186 VAC ± 3% @ 100% load, 120 VAC ± 3% 50% load
  High Line Transfer 300 VAC ± 3%
  High Line Comeback 290 VAC ± 3%
  Frequency Range 46~54 Hz or 56~64 Hz
  Power Factor  0.99 @ 100% load
  Output Output Voltage 208/220/230/240 VAC
  AC Voltage Regulation (Batt. Mode) ± 1%
  Frequency Range (Synchronised Range) 46 ~ 54 Hz or 56 ~ 64 Hz
  Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
  Current Crest Ratio 3:1
  Harmonic Distortion  3 % THD (Linear Load),  5 % THD (non-linear load)
  Transfer Time AC Mode to Batt. Mode Zero
  Inverter to Bypass Zero
  Waveform (Batt. Mode) Pure Sinewave
  Efficiency AC Mode 92%
  Battery Mode 90%
  Battery Battery Type 12 V / 9 Ah
  Numbers 16 Typical Recharge Time 9 hours to recover to 90% capacity
  Charging Current (max.) 1.0 A / 2.0 A (adjustable)
  Charging Voltage 218.4 VDC ± 1%
  Indicators LCD Panel UPS status, Load level, Battery level, Input/output Voltage, Discharge timer and Fault Conditions
  Alarm Battery Mode Sounding every 4 seconds
  Low Battery Sounding every second
  Overload Sounding twice every second
  Fault Continuously sounding
  Physical Dimension, D x W x H (mm) UPS: 530 x 483 x 88 [2U] Battery: 668 x 438 x 88 [2U]
  Net Weight (kgs) UPS: 15 Battery: 48
  Environment Humidity 0-95 % RH @ 0-40°C (non-condensing)
  Noise Level Less than 55dB @ 1 Meter
  Management Smart RS-232/USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix and Mac
  Optional SNMP Power management from SNMP manager and web browser

  Conclusions

  The Mecer ME-6000-WPRU UPS is a high-performance 6KVA online smart UPS designed to provide reliable and uninterrupted power backup for critical systems. With a power capacity of 6KVA (6000VA) and a pure sine wave output, it ensures stable and clean power delivery to your sensitive equipment. The UPS features advanced online double-conversion technology, offering superior protection against power surges, voltage fluctuations, and frequency variations.

  Add to cart

  Quick View
•

  Mecer ME-1000-WPTU UPS, 1KVA Pro Online Smart UPS

  KSh49,000.00

  Description
  Mecer ME-1000-WPTU 1KVA Pro Online Smart UPS

  Mecer ME-1000-WPTU 1KVA Pro Online Smart UPS from the leading mecer UPS authorised dealer, buy online ME-1000-WPTU 1KVA Pro Online Smart-UPS.

  Power disruption and power surges can be very costly for every business,  with destruction to equipment to low production in a business resulting to fewer sales and poor customer satisfaction in case of service delivery organization thats why we recommend ,

  Mecer 1KVA Online UPS Mtech networks is here to change that with Mecer 1KVA UPS that can help run small equipment up to 4 hours and also prevent them from being damaged by the power surge.

  Mecer ME-1000-WPTU 1KVA Pro Online Smart UPS specifications
  SKU ME-1000-WPTU
  WEIGHT 9.8000
  PHYSICAL DIMENSIONS 282 x 145 x 220 (mm)
  CAPACITY 1000 VA / 800 W
  VOLTAGE RANGE LOW LINE TRANSFER 160VAC/140VAC/120VAC/110VAC±5% ( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
  VOLTAGE RANGE LOW LINE COMEBACK 168VAC/148VAC/128VAC/118VAC ± 5 % ( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
  VOLTAGE RANGE HIGH LINE TRANSFER 300 VAC ± 5 %
  VOLTAGE RANGE HIGH LINE COMEBACK 290 VAC ± 5 %
  FREQUENCY RANGE 40Hz ~ 70 Hz
  PHASE Single phase with ground
  POWER FACTOR ** 0.99 @ nominal voltage (input voltage)
  OUTPUT VOLTAGE 200/208/220/230/240VAC
  AC VOLTAGE REGULATION (BATT. MODE) ±1% (Batt. Mode)
  FREQUENCY RANGE (SYNCHRONIZED RANGE) 47 ~ 53 Hz or 57 ~ 63 Hz
  FREQUENCY RANGE (BATT. MODE) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
  OVERLOAD Sounding twice every second
  CURRENT CREST RATIO 3:1
  HARMONIC DISTORTION ** 3 % THD (linear load) ** 6 % THD (non-linear load)
  WAVEFORM (BATT. MODE) Pure Sinewave
  AC TO DC Zero
  INVERTER TO BYPASS 4 ms (Typical)
  AC MODE 87%
  BATTERY MODE 83%
  BATTERY TYPE 12 V / 9 AH
  NUMBERS 2
  RECHARGE TIME 4 hours recover to 90% capacity (Typical)
  CHARGING CURRENT 1.0 A (max.)
  CHARGING VOLTAGE 27.4 VDC ± 1%
  BATTERY TYPE & NUMBERS No
  CHARGING CURRENT No
  CHARGING VOLTAGE No
  HUMIDITY 20-90 % RH @ 0- 40°C (non-condensing)
  NOISE LEVEL Less than 50dBA @ 1 Meter
  OPTIONAL USB/RS-232 PORT Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC
  OPTIONAL SNMP Power management from SNMP manager and web browser
  Run-times of ME-1000-WPTU 1kVA
  Model Number of Batteries Encasement 100% Load Backup Time 75% Load Backup Time 50% Load Backup Time 25% Load Backup Time
  ME-1000-WPTU 2 Internal 4 Minutes 6 Minutes 11 Minutes 24 Minutes

  Add to cart

  Quick View
•

  Mecer 2KVA Line Interactive UPS

  KSh28,000.00

  Description
  2KVA Mecer Line Interactive UPS

  Mecer 2KVA Line Interactive UPS  with AVR, Built-in Surge Protection, without Software (Optional USB Port)   1 x12V 7Ah battery will protect your most trusted assets from being damaged by a power surge, short circuit, and unreliable currents.

  Mecer 2KVA UPS buy from Mtech Networks and have it delivered to you. we also sell replacements batteries for mecer UPS that is 12V 7AH UPS replacement battery at affordable prices.

  2KVA Mecer UPS will keep you performing since the UPS gives you ample time to continue working even when there are power interruptions, Mecer 2KVA UPS has a lead time of more than 15 minutes which enables the user to conclude task started When used together with commercial batteries and inverters, Mecer UPS creates a very powerful and essential power backup for any organisations.

  Mecer 2000VA UPS Specifications
  Capacity: 2KVA (2000VA)
  Technology: Line Interactive UPS.
  Input Voltage: 220VAC
  Input Voltage Range: 145VAC – 290VAC
  Output Voltage: 220VAC ± 10%
  Output Frequency: 50Hz/60Hz (Auto Sensing)
  Transfer Time: < 10ms Waveform: Simulated Sine Wave Battery Type: Sealed Lead Acid (Maintenance-free) Battery Backup Time: Depends on load and battery capacity Recharge Time: 4-6 hours to 90% capacity Protection: Overload, Short Circuit, Surge, and Voltage Regulation Communication Ports: USB, RS232, SNMP (Optional). Software: Power Management Software included LCD Display: Provides real-time UPS status information Audible Alarms: Battery Low, Battery Disconnected, Overload, Fault Dimensions: Varies based on model Weight: Varies based on model Conclusions The Mecer ME-2000-VU Line Interactive 2KVA UPS is a reliable and efficient power backup solution for small to medium-sized applications. With a capacity of 2KVA (2000VA), it offers ample power to keep your critical equipment running during power outages or fluctuations. The line interactive UPS technology ensures effective voltage regulation and protection against power surges, spikes, and sags.
