Merlin 28 2-Zone Electric Fence Energiser
KSh40,000.00
Description

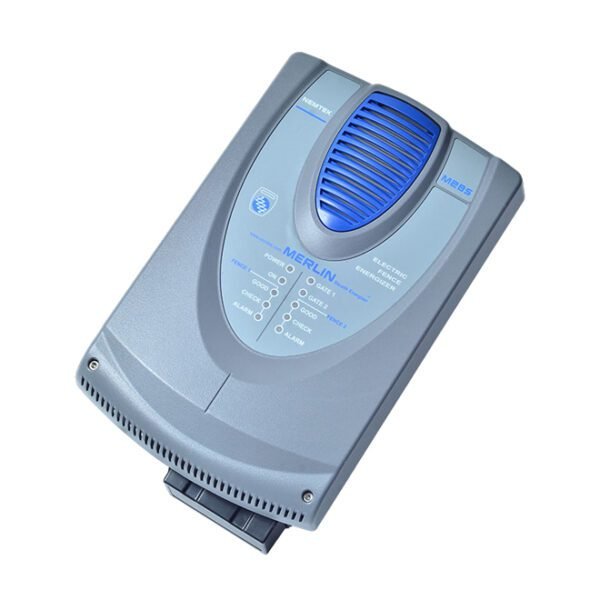

Merlin 28 2-Zone Electric Fence Energiser
Nemtek Merlin 28 2-Zone Fence Energizer is a powerful range that can be used for residential to high-end security needs and is a cost-effective solution where more than one zone is required. Separation of the fence into zones allows easy identification of the zone affected by fence faults or tampering.
Smart design allows the maximum amount of energy to be transferred to the zone that needs it, yet the combined energy of the two zones will not exceed the legal maximum permitted. These energizers can be controlled by a tag
Nemtek Merlin 28 2-Zone Fence Energizer Specifications
Enclosure size: L370 x W232 x D145
Weight excluding battery (7AH): 4.8kg
Weight including battery (7AH): 7.0kg
IP rating: IPx4
Operating temperatures: -10°C to 50°C
Operating humidity: < 80% non-condensing
Electrical supply voltage: 240V
Typical power consumption (normal operating conditions): 27VA
Standby time (fully charged battery): 6hrs
Energy output 500 Ohms load 7.6 Joule
Related products
-
Electric fence digital voltmeter – Kenya
KSh18,000.00Add to cartElectric fence digital voltmeter
Electric fence digital voltmeter Quickly and easily obtains a digital reading of your fence voltage with the Gallagher Fence Volt Meter. Monitors fence voltage and helps trace shorts in the fence line. Electric fence digital voltmeter helps detect a short in your electric fence that occurs when the power escapes to the ground.
This can be caused by a broken underground cable, broken wire or insulator, a loose connection, or something touching the fence, such excessive vegetation. Digital Voltmeter can help you locate the source of a short by measuring the voltage in the fence line. You can also use the Neon Fence Tester, although it is not as accurate.
How to use Electric fence digital voltmeter
Attach it to the fence line, moving it laterally to get a good contact, and place the probe in the ground. You will see a reading on the screen – on a good electric fence line this should be in excess of 6,000 volts.
If the voltage is just slightly below normal – say 5,000 volts – then you probably have a small fault caused by light vegetation, for instance. However, if the reading is substantially lower, then a major fault exists.
To find this fault, move along the fence line, taking readings every 100 metres or so. As a rule of thumb, the voltage will drop roughly 100 volts every 100 metres as you head in the direction of the fault, and will then level out once you pass the fault.
If the fault is not obvious, you should systematically isolate areas of your electic fence using cut-out switches. Once you have located the problem area, you may have to isolate individual wires to pinpoint the problem.
Electric fence digital voltmeter
Electric fence digital voltmeter specifications
Part Number MLD-003
Item Weight 3 ounces
Product Dimensions 7.01 x 1.3 x 2.76 inches
Item model number MLD-003
Is Discontinued By Manufacturer No
Size 17.8*7.0*3.3cm
Color Black
Material ABS
Shape Rectangle
Power Source Battery-powered
Voltage 9900 volts
Handle Material Plastic
Display Style LCD
Batteries Included** No
Batteries Required** No
Pile 9V.6F22or equivalent -
Add to cartDruid 15 LCD Electric Fence Energizer 5 Joule
Druid 15 LCD Electric Fence Energizer 5 Joule LCD display in the Druid range makes information on the status and performance of the energizer quick and easy to read. Druid 15 LCD Electric Fence Energizer Using the Adaptive Power Technology (APT) pioneered by Nemtek, these energizers offer a unique technology to detect how much power a fence can accept and handle before it starts to arc and waste energy.
Druid 15 LCD Electric Fence Energizer maximizes the power on the fence and minimises false alarms. Druid 18LCD The LCD display in the Druid range makes information on the status and performance of the energizer quick and easy to read. Using the Adaptive Power Technology (APT) pioneered by Nemtek. Druid 15 LCD Electric Fence Energizer offers a unique technology to detect how much power a fence can accept and handle before it starts to arc and waste energy. This maximizes the power on the fence and minimizes false alarms.
Druid 18LCD energizer offers the following:7.6J output deal choice for long-distance series electric fencing systems that require monitoringBuilt-in alarm monitors tampering or faults on the high voltage and earth.
Druid 15 LCD Electric Fence Energizer fence wire connectable to armed response radio or GSM module lighting and power surge protectionIntelligent power saving to extend battery life easy-to-use tag included for controlling the energized walk test mode for easy fence testing the LCD background colour changes to easily identify the fence condition.
Druid 15 LCD Electric Fence Energizer powered by 230V mains and includes a built-in battery for back up powerBuilt-in gate alarm inputs to monitor if the gate is open or closed Optional keypad for controlling and programming the energizer. This allows the user to control the energizer remotely, with up to two keypads
15 LCD Electric Fence Energizer 5 Joule specifications
• 4.6 Joule output energy (single zone)
• Robust and flexible design for home and commercial security
• Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
• Connectable to armed response radio or GSM module
• Lightning and power surge protection
• Intelligent power saving to extend battery life
• Easy-to-use tag included for controlling the energizer
• Walk test mode for easy fence testing,• The LCD background colour changes to easily identify the fence condition
• Powered by 240V mains and includes built-in battery for back-up power
• Built-in gate alarm input to monitor if the gate is open or closed
• Optional keypad for controlling and programming the energizer. This allows the user to control the energizer remotely, with up to two keypadsSpecifications
Enclosure size: L285 x W212 x D120
Weight excluding battery (7AH): 3.1kg
Weight including battery (7AH): 5.3kg
IP rating: IPx4
Operating temperatures: -10°C to 50°C
Operating humidity: < 80% non-condensing Electrical supply voltage: 240V Typical power consumption (normal operating conditions): 18VA Standby time (fully charged battery): 24hrs Energy output 500 Ohms load: 4.6 Joule Open circuit voltage: 9 000V -
Add to cartElectric Fence Danger Warning Sign
Danger Warning Sign Indicate[s] a hazardous situation which, if not avoided, will result in death or serious injury. Electric Fence Danger Warning Sign is to be limited to the most extreme situations. DANGER [signs] should not be used for property damage hazards unless personal injury risk appropriate to these levels is also involved. Danger warning signs must be placed along the fence line to warn of the existence of an electrified fence. These must be placed at 10m intervals along the fence, at gateways, or whenever there is a change of direction.
Wire clips on the warning sign reduce installation time. Electric Fence Danger Warning Sign attach the warning signs securely to the electric fence post or on the wire. Most suppliers have warning signs that clip onto the wires for easy attachment. Whether it’s used to control livestock or deter trespassers, electric fences are incredibly dangerous if not properly labeled. Use this “Danger: Electric Fence – Do Not Climb – Do Not Touch” sign to bring attention to the electrified fence, and alert them of the dangers of touching and climbing this specific fence.
Electric Fence Danger Warning Sign ,Not seeing the exact sign you need** No problem, we customize! Our team of professional sign designers will create a unique sign to meet your business’ specific needs. Plus, we don’t charge any extra fees for customizations. Creative Safety Supply is the leader in visual safety and we take pride in providing our customers with high-quality safety, 5S, and Lean products you can trust. Take a look through our inventory of products to find just what you’re looking for. Give us a call today for more information.
Stock Code Name
EA-WRS2/C Warning sign Warning Sign – Custom Screen 250MOQ
EA-WRS2/C/AU Warning sign Warning Sign – Custom Pad print 500MOQ
EA-WRS2/N Warning sign Warning Sign – Nemtek -
Stafix 4600w Electric Fence Energiser
KSh180,000.00Add to cartDescription
Stafix 4600w Electric Fence EnergiserConnect with nearby energizer using Bluetooth to check voltage, turn on and off, and configure the remote address
Connect to energizer remotely over the internet to receive notifications when voltage drops. Check voltage remotely, and turn on and off remotely (Requires Wi-Fi network coverage).
Monitor and control the energizer from your phone
Use the Datamars Livestock Farm App to connect to the energizer and see the fence voltage in real-time, configure the energizer settings, and connect the energizer to the Wi-Fi network.
Once the energizer is connected to the internet, it sends a notification when fence voltage drops, so issues can be resolved quickly.
In conclusion, If a fault is found on the fence line, use the app to turn the energizer off right from where you’re standing to fix the fault, then turn the energizer back on and check the voltage is back to normal.
-
