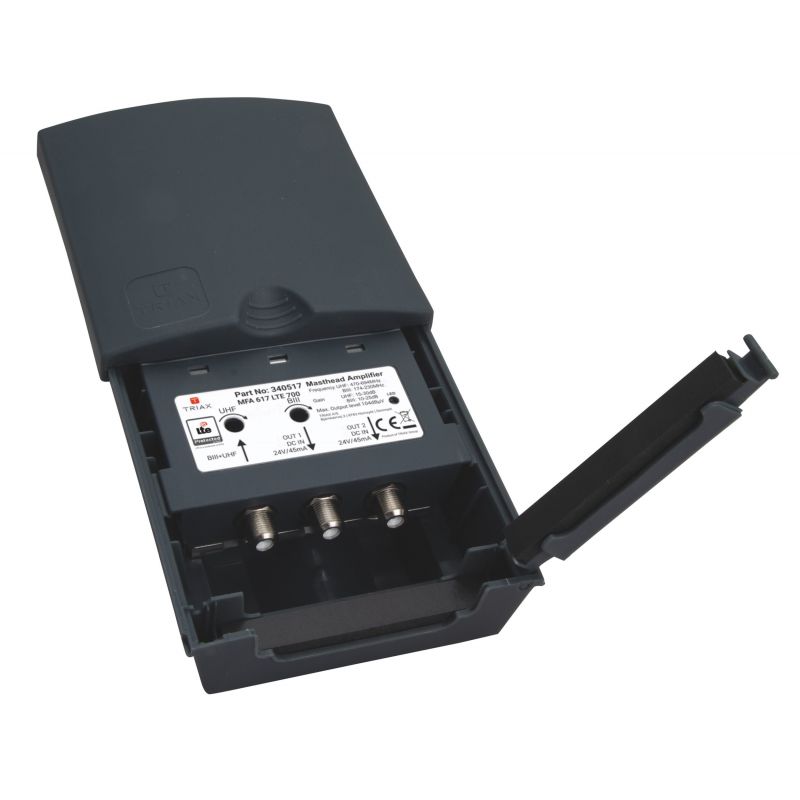

MFA 617 1 Input LTE 700 MHz Multiband mast amplifier Triax
KSh4,646.00
MFA 617- mast amplifier
Features
24 VDC supply
1 input mast amplifier
LTE protection LTE 700
Gain: 10 – 25/15 – 30 dB
Output level: 104 dB?V.
High resistance to external disturbances
High resistance to the corrosion
Optimized mechanism for easy installation
Optimized mechanism for easy installation
Neoprene clip for cable fastening
F female connectors.
Waterproof case.
RF shielded and CE approved (EN 50083).
Specifications
ORDER INFORMATION
EAN Number 5702663405172
CHARACTERISTICS
Type Amplifier – mast
Max. Output level (@ -60dB IMD) 104 dB?V
FREQUENCY
Input 1 – frequency 174…230 / 470…694 MHz
Input 1 – band BIII(DAB) + UHF
Input 1 – channels 5…12 / 21…48
LTE protection @ 700Mhz
GAIN
Input 1 – gain 10…25 / 15…30 dB
Input 1 – noise figure <4.0 dB
LOSS
Rejection @ 714 MHz (Ch. 51) 17.0 (@gain=30dB) dB
RETURN LOSS
Return Loss 10 dB
ELECTRICAL
Impedance 75 ?
OPERATIONAL
LED indicator Green
DC Operating voltage 24 VDC
DC Current consumption 45 mA
CONNECTORS
Number of inputs 1
Number of outputs 2
Connector Type F-female
MECHANICAL
Product Height 115 mm
Product Depth 60 mm
Product Width 107 mm
Colour RAL 7016 - Anthracite grey
Packing QTY 1
Packaging Height 0,060 m
Packaging Width 0,120 m
Packaging Depth 0,110 m
Packaging Volume 0,001 m3
Net Weight 0,230 kg
Tara Weight 0,025 kg
Total Weight 0,255 kg
