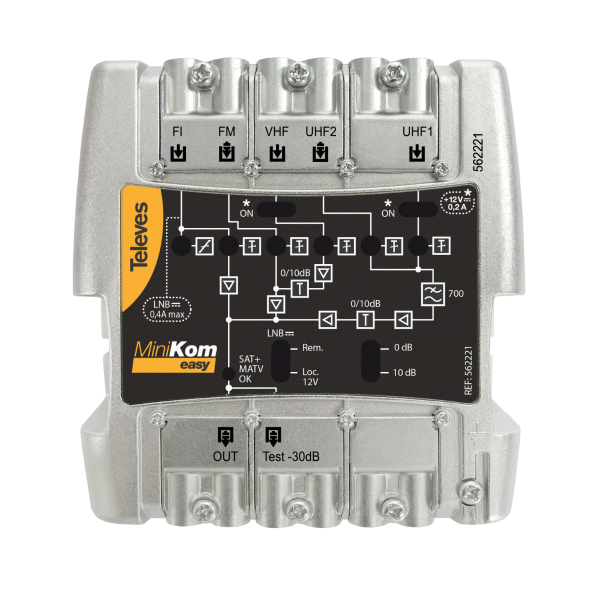

Headend multiband amplifier for terrestrial and satellite signal amplification. It consists of 5 inputs (FM-VHF-UHF-UHF-SAT), of which the VHF and UHF have 2 selectable gain margins, while FM and SAT only have one amplifier stage. The SAT stage incorporates a switch to select the LNB power supply locally (through the amplifier itself) or remotely (from a receiver or other external source).
Central amplifier adapted to the 2nd Digital Dividend with integrated 5G LTE filter. It offers 36dB of gain for UHF and up to 42dB for SAT, and supports**115dB**V maximum output level. Manually configurable gain through switches (high/low). The amplifier admits DC current pass**to all inputs, except FM, to power previous equipment and BOSS antennas.
Very compact broadband amplifier (103x103x50mm) with EasyF connection system. It has a test output (-30dB) to be able to carry out checks without interrupting the service. Low consumption integrated power supply.
**
MiniKom EasyF 5-Input Multiband?Amplifier (FM-VHF-UHF-UHF-SAT) with 5G LTE filter
What technical specifications does the MiniKom EasyF Televes 562221 have?
Bands FM VHF U1-U2 SAT
Frequency margin MHz 88…108 174…400 470…694 950…2150
Gain 0 dB 15 34 36 42
10 24 26
Gain adjustment range Manual
0 … 20 Manual
0 … 20 Manual
0 … 20 Manual
0 … 30
Input equalizer – – – Manual
0…15
Max. output level IMD3 (2ch, -35dB) dB?V 120 121 122 123
DIN 45004B 113 114 115 –
IMD3 (2ch, -60dB) – 111 112 –
IMD2 (2ch, -60dB) – >101 – –
Noise figure dB 6 5 7 11
Test -30
Local power supply LNB V – 12
Maximum local current LNB mA – 400
Remote power supply LNB V – VRX
Maximum remote current LNB mA – 500
Power supply inputs V – 12 12 –
Max. current through inputs mA – 200 200 –
400
Mains voltage / frequency V~ /Hz 220 – 230 / 50-60
Total AC consumption (without input powering) OFF W, mA 6.5 / 70
Total AC consumption (with input powering) ON W, mA 12.5 / 120
Protection index IP 20
Operating temperature range ?C -5 … +45
