Broadband Line Amplifier (47-862 MHz) 39dB LTE

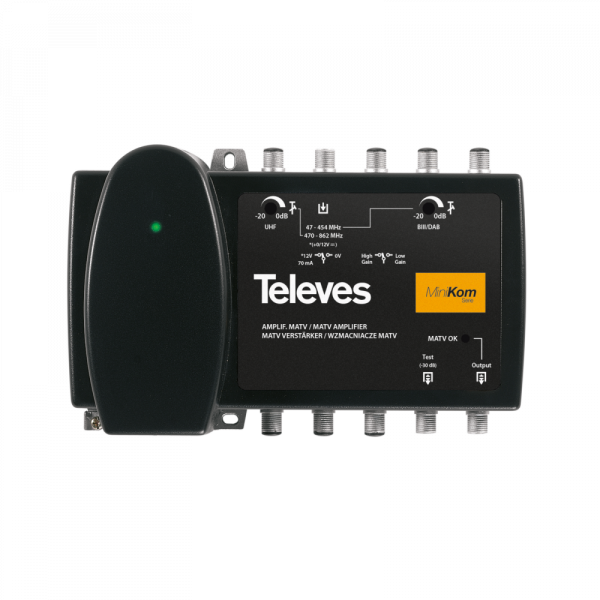

Multiband Line Central 1 in / 1 out 39dB MiniKom Televes 537302
Broadband line amplifier (1 input / 1 output) (47-862 MHz) for collective terrestrial TV distribution. The amplifier has “F” connectors. It allows powering of preamps such as mast amplifiers or antennas with BOSS technology.
The MiniKom control unit has a configurable gain via swtich (high / low): in high gain mode the equipment offers up to 39dB, if we select low gain it would be 29dB. In addition, the output is adjustable (0..20 dB) thanks to an attenuator integrated in the output.
Line amplifiers are commonly used to reamplify the signal in the main downcomer of a community when the header signal is not enough to obtain an optimal level in the first floors.
MiniKom 1-in / 1-out Terrestrial Broadband Reamplifier
What are the main features of the Televes 537302 Amplifier?
Separate amplification that improves the output level without causing interference between bands
Gain attenuators on each input (0-20 dB), with PIN diode technology
Configurable gain via switch (high / low) and high output level
High armor chassis, made of Zamak
F connectors
Output signal indicator LED
Test output (-30 dB)
Switch for powering preamps or BOSS systems
Screwable on wall
What technical specifications does the MiniKom Televes 537302 amplifier have?
Band 47 … 454 470 … 862
Gain selec. SW HIGH dB 32 39
SW LOW 22 29
Max. output level EN50083 IMD3 (2 tones – 35 dB) dB?V/dBmV > 121/ 61 > 123 / 63
DIN 45004B > 114 / 54 > 116 / 56 > 114
EN50083 IMD3 (2 tones – 60 dB) 111 / 51 113 / 53
IMD2 (2 tones – 60 dB) 103 / 43 –
Noise figure dB < 6
Attenuator dB 0 ... 20
Plug type ?Type C "European plug"
Interstage equalizer V~ 207 ... 254
Max. consumption. AC W / mA 7/50
Input line
powering Selec. V 0 / 12 (70 mA)
Operating
temperature ?C
F? -5 ... +45
- 41 ... + 113
Protection
index IP 20
