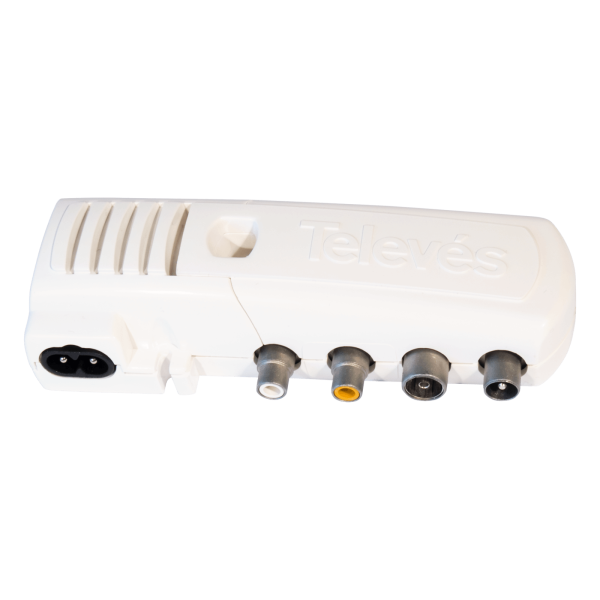

Modulator VHF / UHF with display Televes 5858
Modulator VHF / UHF with display allows DC + LNB step. Ref: 5858 of Televes.
A / V domestic modulator that generates an analog channel in any MATV band. It is easy to install and use. Design of size and reduced consumption without losing quality, completely robotic manufacturing that allows to obtain the same results as other modulators of larger size.
Very useful when you want to share a common channel in the different rooms of your home, office or office.
Main features
Channel display by display.?
It has gain control to adjust its level to other channels of the system.?
The Loop. RF is compatible with SMATV installations and allows the passage of current for powering an LNB.?
Set the difference between carriers by regulating the level of audio.?
Generates a test signal for facilitate tuning of the generated channel.
Includes switching power supply that optimizes energy efficiency.
Technical specifications
Standard PAL B/G
Band S (S01-S14, S19)
BIII (Ch. 5-12)
Hyperband (S20-S29)
VHF: E, F, G (74, 75, 76)
UHF (Ch. 21-69)
Output level (typ.) dB?V 90
Regul. range dB >15
Video Vpp 1 (s/75ohm)
Audio Hz 50 – 15000
Loop through
Band MHz 5-2400
Through losses dB < 2
DC bypass mA 300 max.
General
Power supply V~ 196 - 264
Consumption W 2,5
Operating temp. ?C -5 ... +45
How to install a VHF/UHF modulator (Spanish)
